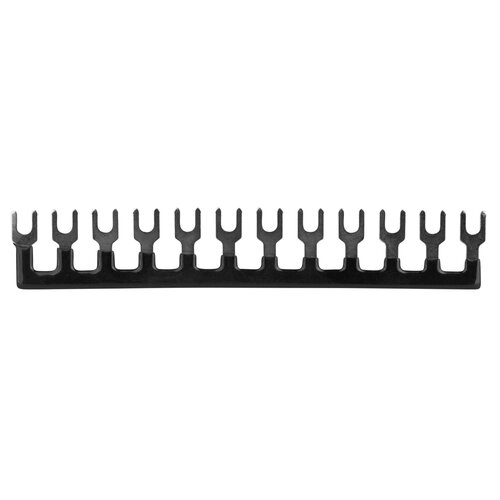

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

Highlights

• Fits 12 mm pitch lug type barrier terminal strips
• Insulated to prevent accidental electrical shock or short circuit
• Break them into smaller jumpers for terminal strips with fewer poles
• Quickly connects 12 poles together

Product Details

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

Why fool with stripping wires and wrapping them around screws? This insulated 12 position terminal jumper bar connects all 12 poles together in seconds making the whole barrier strip one conductor for positive or negative hook-up. Break it in half and now you have two 6 position jumper bars making one barrier strip positive and negative, or use it on a smaller 6 pole terminal barrier strip. The insulation helps prevent accidental electrical shock or short circuits. Its 12 mm pitch only fits 12 mm pitch lug terminal barrier strips.

Specifications: • Terminals: 12 • External fork width: 8.07 mm • Internal fork width: 4.1 mm • Fork thickness without insulator: 0.85 mm • Total bar width with forks: 141.16 mm • Pitch: 12 mm.
