CE48-4 Full-range woofer

7.95

  • Size: 2 inches
  • Impedance: 4 ohms
  • Power handling: 5 watts RMS
  • Frequency response: 80Hz to 20kHz
  • Sensitivity: 87.5dB
  • 10 in stock

    Description

    The Dayton Audio CE48-4 is a tiny speaker that packs a big punch. At just 2 inches in diameter, it is one of the smallest full-range woofers on the market. But don’t let its size fool you: the CE48-4 is capable of producing surprisingly full and rich sound.

    Highlights

    • Size: 2 inches
    • Impedance: 4 ohms
    • Power handling: 5 watts RMS
    • Frequency response: 80Hz to 20kHz
    • Sensitivity: 87.5dB

    Product details

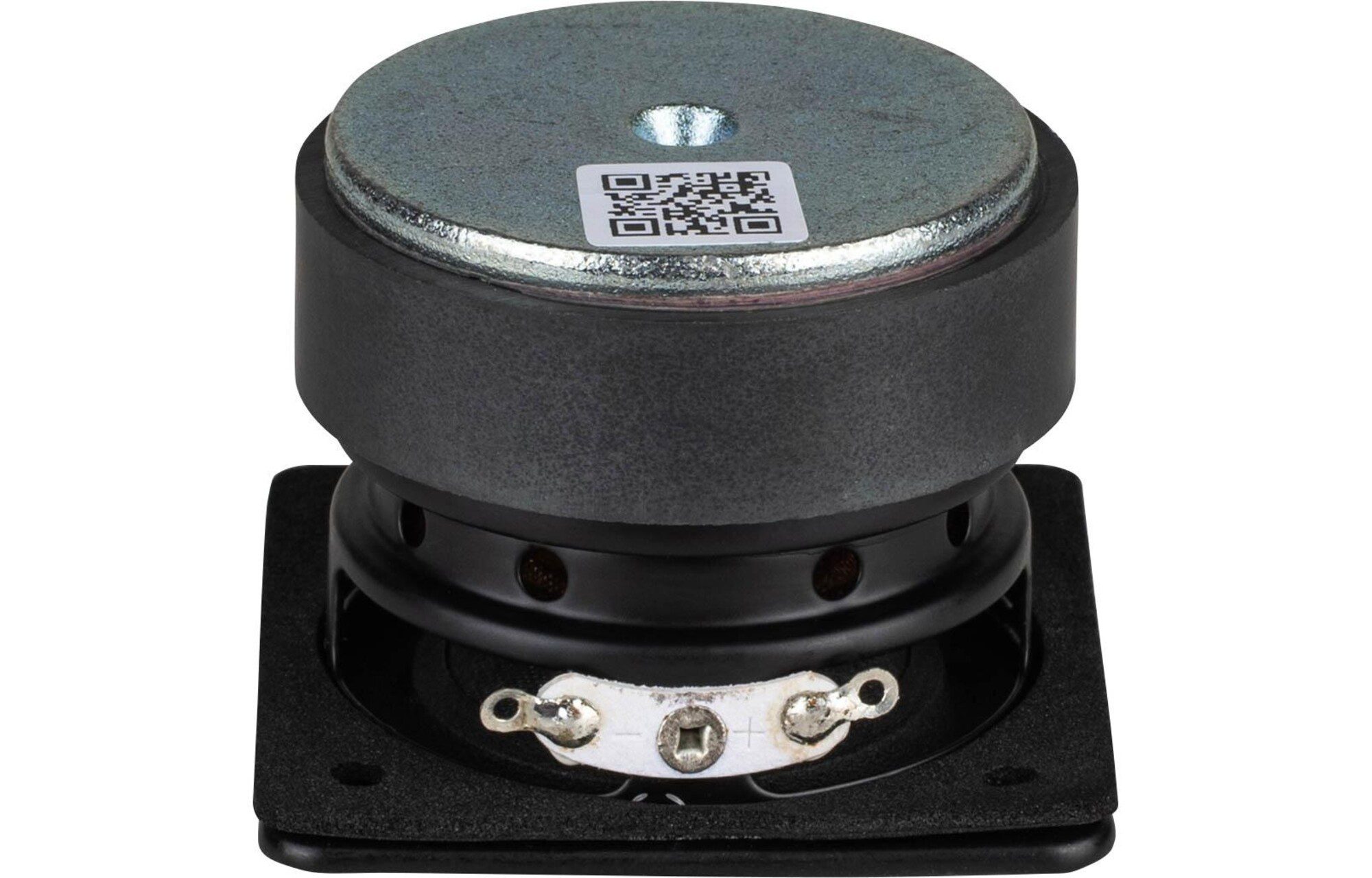

    Dayton Audio CE48-4 2″ Full-Range 5W 4 ohm

    The CE48-4 is perfect for DIY projects of all kinds. Its small size makes it easy to fit into even the most cramped spaces. And its affordable price makes it a great choice for budget-conscious projects. But the CE48-4 is more than just a speaker for DIYers. It is also a popular choice for commercial audio systems and art exhibits. Its wide frequency response and high sensitivity make it ideal for a variety of applications.

    Specifications

    Article number

    CE48-4
    EAN

    0848791009303
    Woofer Series
    Dayton Audio CE series
    Woofer Type
    Full-Range
    Nominal Diameter
    2″
    Power Handling (RMS)
    5 Watts
    Power Handling (max)
    10 Watts
    Impedance (Z)
    4 Ω
    Sensitivity (SPL at 1m / 2.83V)
    79 dB
    Frequency Response
    120 – 20.000 Hz
    Voice Coil Diameter
    16 mm
    DC Resistance (Re)
    3.5 Ω
    Voice Coil Inductance (Le)
    0.37 mH
    Resonant Frequency (Fs)
    151 Hz
    Mechanical Q (Qms)
    11.03
    Electromagnetic Q (Qes)
    1.04
    Total Q (Qts)
    0.95
    Diaphragm Mass Inc. Airload (Mms)
    1.9 g
    Mechanical Compliance of Suspension (Cms)
    0.59 mm/N
    Surface Area of Cone (Sd)
    9.1 cm²
    Volume of Displacement (Vd)
    1.09 cm³
    BL Product (BL)
    2.48 Tm
    Compliance Equivalent Volume (Vas)
    0.068 liters
    Maximum Linear Excursion (Xmax)
    1.2 mm
    Overall Outside Diameter
    48 mm
    Overall Depth
    35.8 mm
    Baffle Cutout Diameter
    45 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    3.5 mm
