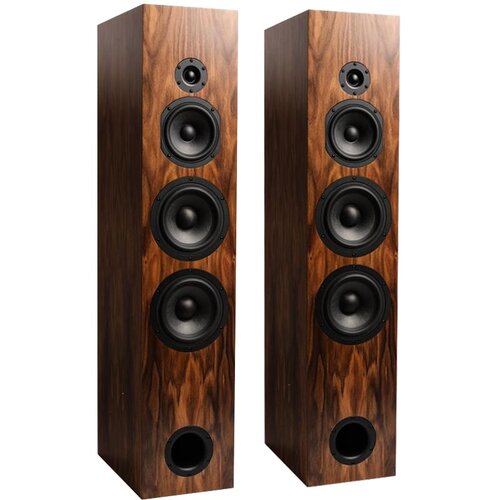

CSS Criton 3TD-X Tower Speaker Kit with Superior Crossover
€3,499.95
The CSS Criton 3TD-X Tower Kit is a top-of-the-line DIY speaker kit designed to deliver exceptional audio performance for audiophiles. This kit is a part of the Criton series by Creative Sound Solutions, known for their high-quality components and meticulous design. With Superior Crossover design.
Available on backorder
Highlights of the CSS Criton 3TD-X Tower Kit with Superior crossover
- 3-way tower design using LD25X tweeter, LDW6 mid woofer, and dual LDW7 woofers
- Wide dispersion speaker without a waveguide, providing even directivity
- Three crossover options for customization
- High-quality construction and components for premium sound
- Superior Crossover version
Product details CSS Criton 3TD-X Tower Kit with Superior crossover
CSS Criton 3TD-X Tower Kit with Superior crossover
The Criton 3TD-X Tower Kit is designed for audiophiles seeking superior sound quality with the flexibility and satisfaction of building their own speakers. The kit comes with detailed instructions, SmartNode crossover boards for easy assembly, and optional MDF flat packs for those who prefer a more straightforward build process.
The Criton 3TD-X Tower Kit includes all necessary components to build a pair of high-performance 3-way tower speakers. This kit features the LD25X tweeter for high-frequency clarity, a dedicated LDW6 midrange driver for detailed mids, and dual LDW7 woofers for powerful bass. The speakers are designed to deliver a flat frequency response from 32 Hz to 20 kHz, ensuring high fidelity and accurate sound reproduction.
This kit comes with the crossover: – Superior Crossover with Jantzen Superior Z-Caps and air-core inductors.
The speakers have a nominal impedance of 4 ohms and a sensitivity of 87.8 dB, making them compatible with a wide range of amplifiers (recommended power: 30-300 watts). The tower design measures 105,4cm H x 21,6cm W x 34,3cm D and weighs 31,75 kg per speaker when assembled.
The kit comes with three crossover options: Standard Crossover, Superior Crossover with Jantzen Superior Z-Caps and Superior Crossover with Jantzen Amber Z-Caps.
Specifications
| Article number | Criton-3TD-X-Tower-Kit-SUP |
| Nominal Diameter | Bass 7", Midrange 6.5'', Tweeter 1" |
| Power Handling (RMS) | Bass 80 Watts x 2, Midrange 80 watts, Tweeter 75 Watts |
| Impedance (Z) | Bass 8 Ω, Midrange 6 Ω, Tweeter 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | Bass 86 dB, Midrange 88.4 dB, Tweeter 90 dB |
| Frequency Response | Bass 30-4.500 Hz, Midrange+Tweeter 2.000-22.000 Hz. |
| Voice Coil Diameter | Bass 40 mm, Midrange 40 mm, Tweeter 27 mm |
| DC Resistance (Re) | Bass 6.4 Ω, Midrange 4.8 Ω, Tweeter 6.4 Ω |
| Voice Coil Inductance (Le) | Bass 0.17 mH, Midrange 0.16 mH, Tweeter 0.07 mH |
| Resonant Frequency (Fs) | Bass 30 Hz, Midrange 50 Hz, Tweeter 865 Hz |
| Mechanical Q (Qms) | Bass 9, Midrange 11.1, Tweeter 4,21 |
| Electromagnetic Q (Qes) | Bass 0.39, Midrange 0.44, Tweeter 1.85 |
| Total Q (Qts) | Bass 0.37, Midrange 0.42, Tweeter 1.28 |
| Surface Area of Cone (Sd) | Bass 131 cm², Midrange 93 cm² |
