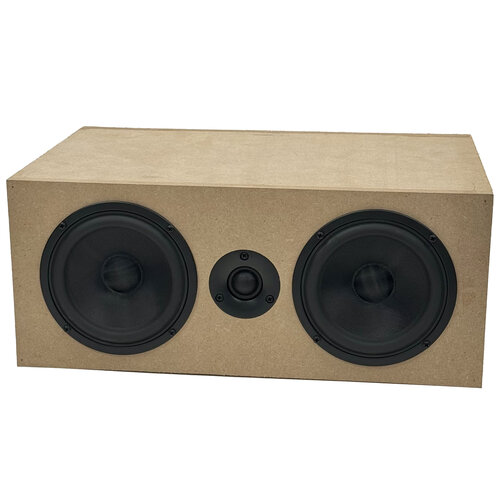

CSS Torii MTM Speaker Kit
€359.95
The CSS Torii MTM Speaker Kit is an affordable and high-quality entry point into the world of DIY high-end audio. Named after the traditional Japanese gateway, the Torii, this kit serves as a gateway into the CSS brand’s offerings, providing exceptional audio performance at a competitive price.
Available on backorder
Highlights of the CSS Torii MTM Speaker Kit
- Uses CSS W5-06 woofers and T22-04 tweeters
- SmartNode crossover boards for easy assembly
- Sealed and ported flat pack options available
- Designed for accurate and engaging sound reproduction
Product details CSS Torii MTM Speaker Kit
CSS Torii MTM Speaker Kit
The CSS Torii MTM Speaker Kit includes everything you need to build a pair of high-performance bookshelf speakers. The kit features CSS’s W5-06 woofers and T22-04 tweeters, ensuring a balanced and detailed sound. The SmartNode crossover boards make assembly straightforward, even for beginners, by eliminating the need to read complex circuit diagrams.
The kit comes with an option for either sealed or ported flat packs, with CNC-rabbited edges for easy alignment during assembly. The sealed flat pack is 9 3/4″ deep, while the ported version is 12″ deep. The speakers’ design has been fine-tuned through extensive measurements, modeling, and listening tests to ensure a musically engaging sound that competes with higher-end offerings.
Key specifications include: – Anechoic Response: ±3 dB from 50 Hz to 20 kHz – In Room Response: ±3 dB from 40 Hz to 20 kHz – F3: 50 Hz – Sensitivity: 86 dB – Impedance: 8 Ohm – Dimensions: 12” H x 7” W x 12” D
The CSS Torii MTM Speaker Kit is perfect for those looking to build their first high-fidelity speaker system or anyone interested in DIY audio projects. With a focus on ease of assembly and high-quality sound, it offers an excellent introduction to the CSS product line.
Specifications
| Article number | Torii-MTM-Kit |
| EAN | 8785256861965 |
| Woofer Type | Dome Tweeter, Bass-Midwoofer |
| Nominal Diameter | Tweeter 2", Woofer |
| Sensitivity (SPL at 1m / 2.83V) | Woofer 86.9 dB, Tweeter 87.7 dB |
| DC Resistance (Re) | Woofer 4.7 Ω, Tweeter 3.7 Ω |
| Resonant Frequency (Fs) | Woofer 39 Hz, Tweeter 1.099 Hz |
| Mechanical Q (Qms) | Woofer 8, Tweeter 9.3 |
| Electromagnetic Q (Qes) | Woofer 0.53, Tweeter 3.15 |
| Total Q (Qts) | Woofer 0.50, Tweeter 2.35 |
| Diaphragm Mass Inc. Airload (Mms) | 12.2 g |
| Mechanical Compliance of Suspension (Cms) | Woofer 1.35 mm/N, Tweeter 0.078 mm/N |
| Surface Area of Cone (Sd) | Woofer 93 cm² |
| BL Product (BL) | Woofer 5.2 Tm, Tweeter 1.5 Tm |
| Compliance Equivalent Volume (Vas) | Woofer 16.6 Liters, Tweeter 0.004 Liters |
