Dayton Audio 15″ Reference Passive subwoofer kit

Highlights

• High excursion RSS390HO-4 driver delivers powerful bass response with low distortion
• Passive radiator assisted design extends bass response and keeps enclosure small
• Perfect for use with high power music and home theater systems
• Customize the precision CNC-cut MDF enclosure to fit in any decor

Product details

Dayton Audio Reference 15″ With Dual Passive Radiator Subwoofer Kit

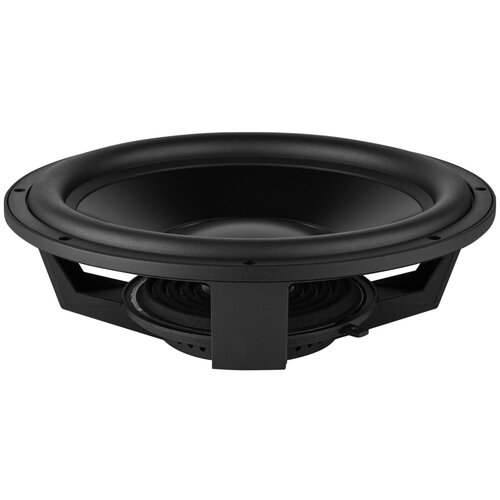

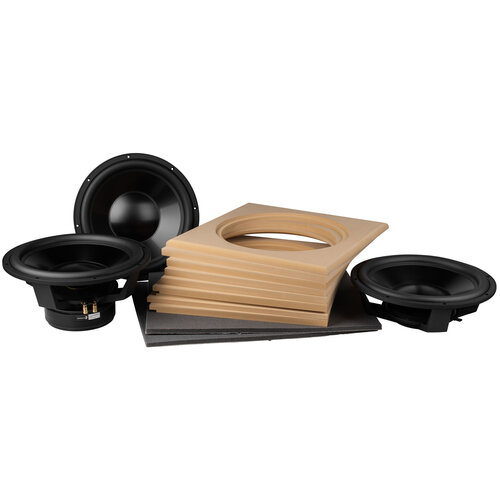

For ultra-low frequency reproduction, powerful output capability, and incredibly low distortion, this passive 15″ subwoofer kit is an obvious choice. Using the popular Dayton Audio Reference Series RSS390HO-4 15″ aluminum cone driver and two of the matching RSS390-PR 15″ passive radiators, this subwoofer kit is an incredibly potent combination. With an unassisted response down to 24 Hz and capable of over 112 dB of output, you can expect earth shaking bass response without the high distortion that can result from applying massive amounts bass boost which is all too common on many high output subwoofer systems. The included CNC-cut knock-down enclosure is constructed of thoroughly braced 18 mm MDF with a double thickness 36 mm front baffle.

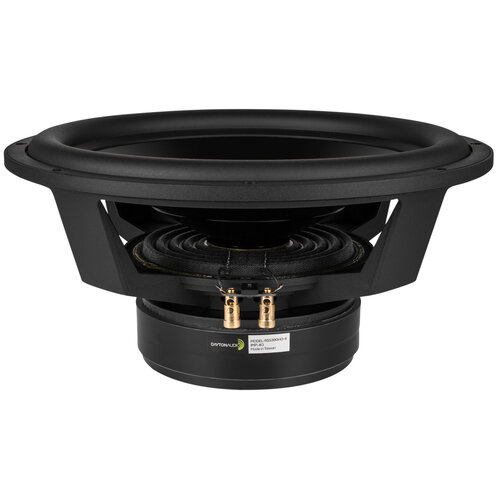

Dayton Audio RSS390HO-4 15″ Subwoofer Specifications: Power handling: 800 watts RMS/1,600 watts max • Le: 1.79 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency range: 21 to 600 Hz • Fs: 21.5 Hz • SPL: 92.8 dB 2.83V/1m • Vas 5.93 cu. ft. • Qms: 3.69 • Qes: 0.35 • Qts: 0.32 • Xmax: 12 mm. • Holes (# and size in mm): 8 x 6,5 mm Ø.

Enclosure Specifications: Panel thickness: 18 mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 90.6 L • External dimensions: 488 x 488 x 508 mm • Completed subwoofer weight: 32.6 Kg.

Note: Here is a list of what you need to build this subwoofer-cabinet bundle that’s not included and where to find it on our webshop:

Passive: When building passive, the kit requires a low passfiltered signal.

• External amps: Dayton Audio SA1000 / Dayton Audio APA1200DSP
• Speaker wire
• Binding posts

Active:

• Plate amps: Dayton Audio SPA500 / Dayton Audio SPA1000
• Scribing for cutout: No
• Braces have to be cut out too

Needed for both:

• Screws: 8 x 081-425
• Feet  (optional)
• Coating(optional)
• Damping material (optional for tuning the response): Visaton 5070
