Discovery 18W/8424G00 Bass-midwoofer

74.95

  • High Output 89,5dB @ 2,83V
  • Coated NRSC Fiber Glass Cone
  • Die cast Alu Chassis vented below spider
  • Excellent Midrange Performance
  • Low Damping SBR Rubber Surround
  • Description

    Highlights

    • High Output 89,5dB @ 2,83V
    • Coated NRSC Fiber Glass Cone
    • Die cast Alu Chassis vented below spider
    • Excellent Midrange Performance
    • Low Damping SBR Rubber Surround

    Product details

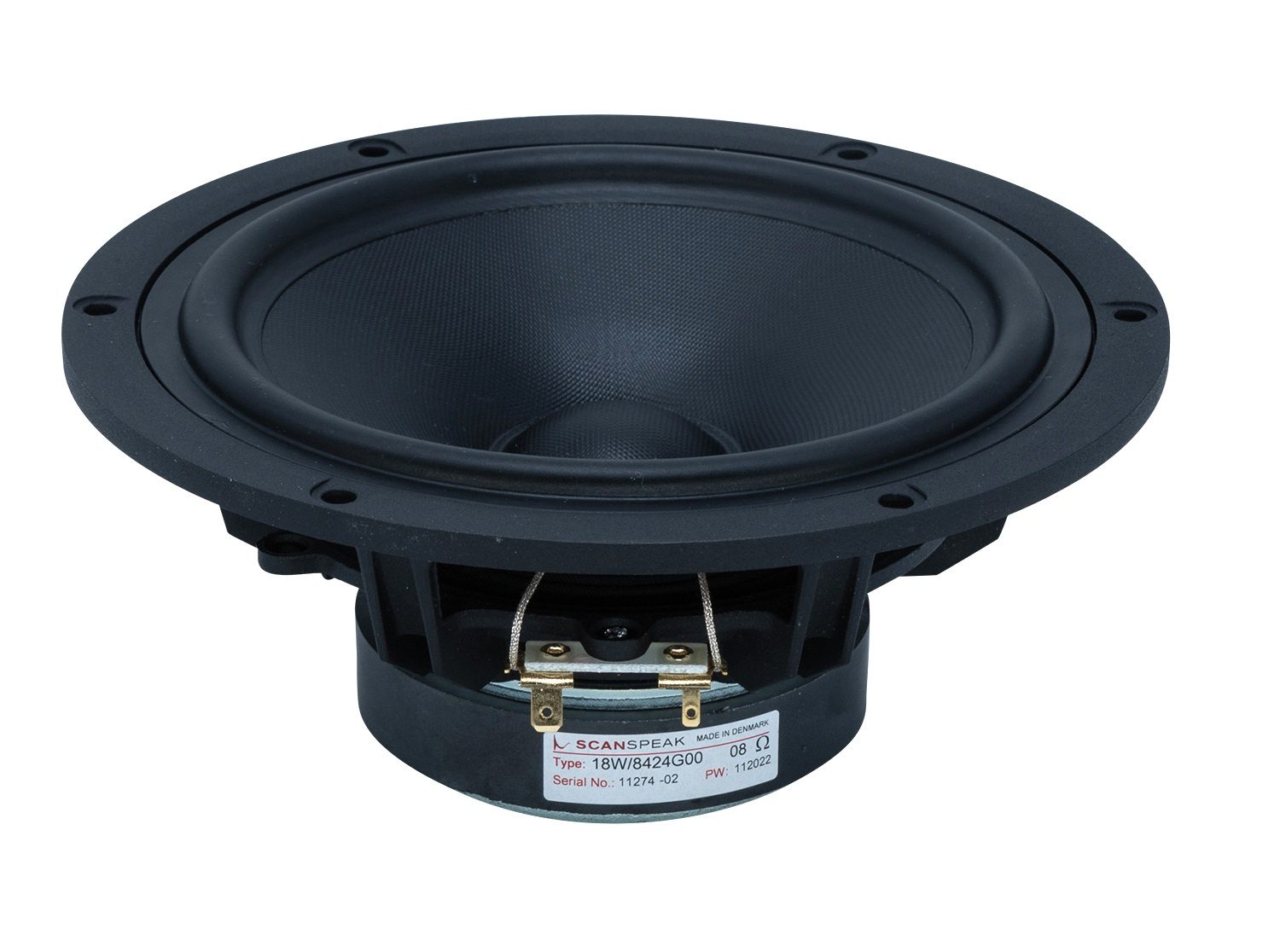

    Scan-Speak Discovery 18W/8424G00 7″ Woofer

    The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

    Specifications

    Article number

    18W/8424G00
    EAN

    0696277268825
    Woofer Series
    Scan-Speak Discovery series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7″
    Power Handling (RMS)
    50 Watts
    Power Handling (max)
    110 Watts
    Impedance (Z)
    8 ohms
    Sensitivity (SPL at 1m / 2.83V)
    89.4 dB
    Voice Coil Diameter
    0.98″
    DC Resistance (Re)
    5.7 ohms
    Voice Coil Inductance (Le)
    0.69 mH
    Resonant Frequency (Fs)
    54 Hz
    Mechanical Q (Qms)
    4.04
    Electromagnetic Q (Qes)
    0.51
    Total Q (Qts)
    0.45
    Diaphragm Mass Inc. Airload (Mms)
    11.3g
    Mechanical Compliance of Suspension (Cms)
    0.77 mm/N
    Surface Area of Cone (Sd)
    137 cm2
    BL Product (BL)
    6.6 Tm
    Compliance Equivalent Volume (Vas)
    0.71 ft.³
    Maximum Linear Excursion (Xmax)
    2.6 mm
