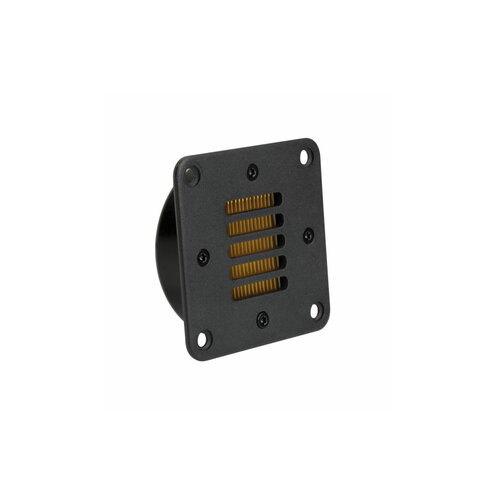

Dynavox AMT-1 Air Motion Tweeter
€99.95
The Dynavox AMT-1 Air Motion Tweeter is a high-end tweeter that uses a folded ribbon diaphragm to move air. This design allows for a very high frequency response and low distortion. The AMT-1 has a frequency response of 2100-30.000 Hz and a sensitivity of 90 dB/W/m. It is rated at 20 watts RMS and can handle a peak power of 50 watts. The AMT-1 has a nominal impedance of 5 ohms.
2 in stock
Highlights
- High-frequency response (2100-30.000 Hz)
- Low distortion (<1%)
- Wide dispersion (120 degrees)
- High sensitivity (92 dB/W/m)
- Maximum power handling of 50 watts
- Made with high-quality materials
Product details
Dynavox AMT-1 Air Motion Tweeter
The AMT-1 has a frequency response of 2100-30.000 Hz, with a sensitivity of 92 dB/W/m. It has a nominal impedance of 5 ohms and a maximum power handling of 40 watts. The tweeter is made with a high-power neodymium magnet and a folded membrane made of Kapton and aluminum.
The AMT-1 is recommended for use with a crossover frequency of >2500 Hz. It is a good choice for high-end speakers that require a tweeter with a wide frequency response, low distortion, and good dispersion.
Specifications
| Article number | 207583 |
| EAN | 4250019132797 |
| Tweeter Series | Air Motion Tweeter |
| Power Handling (RMS) | 20 Watts |
| Power Handling (max) | 50 Watts |
| Impedance (Z) | 5 Ω |
| Frequency Response | 2100 – 30.000 Hz |
| DC Resistance (Re) | 4.5 Ω |
| Overall Outside Diameter | 70 x 70 mm |
| Cutout Diameter | 65 mm |
| Depth | 30 mm |
| Article number | 207583 |
| EAN | 4250019132797 |
| Tweeter Series | Air Motion Tweeter |
|---|---|
| Power Handling (RMS) | 20 Watts |
| Power Handling (max) | 50 Watts |
| Impedance (Z) | 5 Ω |
| Frequency response | 2100 – 30.000 Hz |
| DC Resistance (Re) | 4.5 Ω |
| Overall Outside Diameter | 70 x 70 mm |
| Cutout Diameter | 65 mm |
| Depth | 30 mm |
