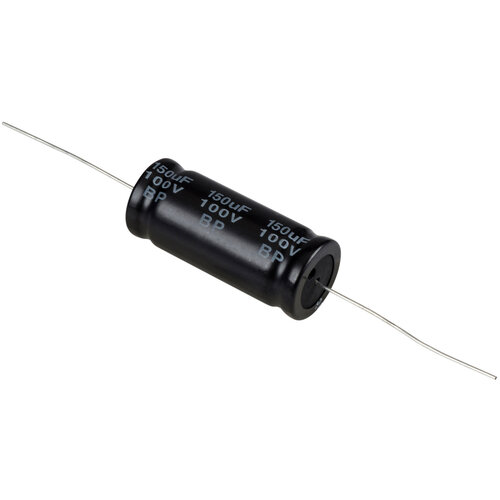

Electrolytic Non-Polarized Cap | 150 µF | 10% | 100V
€6.45
Electrolytic Non-Polarized Cap | 150 µF | 10% | 100V
4 in stock
Description
Highlights
- 150 microfarad value
- 18 mm diameter x 44 mm long
- 5% dissipation factor and 100 VDC working voltage
- ±10% tolerance
Product details
Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.
Specifications: Value: 150.0 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 18 mm Dia. x 44 mm L.
Specifications
| Article number | 027-364 |
| EAN | 0844632018299 |
| Capacitance (µF) | 150 µF |
| Voltage Rating | 100V |
| Tolerance | 10% |
| Dimensions: Ø * L (mm) | 18 x 44 |
| Termination Style | Axial |
| Value | 150.0 µF |
| Rated | 100 VDC |
| Dissipation Factor | Max 0.5 (5%) @ 1 KHz |
| Dimensions | 18 mm Dia. x 44 mm L. |
| Article number | 027-364 |
| EAN | 0844632018299 |
Additional information
| Capacitance (µF) | 150 µF |
|---|---|
| Voltage Rating | 100V |
| Tolerance | 10% |
| Dimensions: Ø * L (mm) | 18 x 44 |
| Termination Style | Axial |
| Value | 150.0 µF |
| Rated | 100 VDC |
| Dissipation Factor | Max 0.5 (5%) @ 1 KHz |
| Dimensions | 18 mm Dia. x 44 mm L. |
