Fosi Audio M04 Mono Subwoofer Amplifier

€59.95

Inject new energy into your audio experience with the Fosi Audio M04 Mono Amplifier. This versatile amplifier caters to both traditional speaker setups and those seeking more depth.

Available on backorder

SKU: M04 Categories: , ,
Description

Highlights

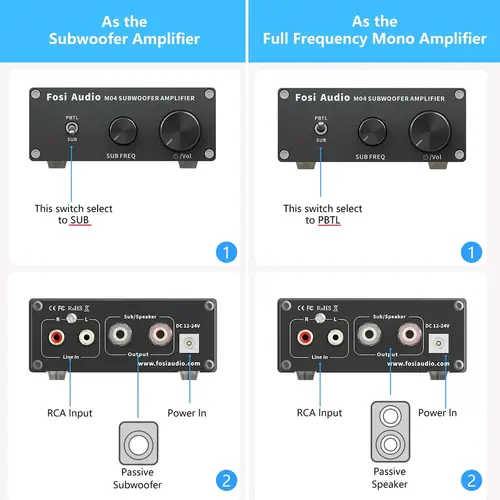

  • Stereo mode: Delivers clear and powerful sound to drive two passive speakers for a traditional listening experience.
  • Mono mode:
  • Dedicates all amplification power to a single speaker for potentially louder and more dynamic sound, especially with high-impedance speakers.
  • Can be used with two M04 units in mono mode, each driving a separate speaker for potentially improved stereo separation compared to a single amplifier in stereo mode.
  • Texas Instruments TPA3116 Chip Technology
  • Compact Design



Product details

Fosi Audio M04 Mono Amplifier



At its core, the M04 offers two distinct functionalities. In stereo mode, it delivers clear and powerful sound to drive two passive speakers for a well-rounded listening experience. However, where it truly shines is its mono mode capability. Here, you can dedicate all the amplifier’s power to a single speaker, potentially resulting in a louder and more dynamic soundscape, especially for demanding high-impedance speakers. Additionally, you can utilize two M04 units in mono mode, each driving a separate speaker for potentially improved stereo separation compared to using a single amplifier in stereo mode.



The Fosi Audio M04 Mono Amplifier boasts Texas Instruments TPA3116 chip technology for efficient power delivery and a compact design that won’t crowd your space. This adaptability, paired with its clear audio output and multiple operation modes, makes the M04 Mono Amplifier a compelling choice for audiophiles seeking to enhance their sound system, be it a traditional stereo setup or a more customized configuration.



Supplied with 19V 4.74A adapter.

Specifications

Article number M04
EAN 6976136960379
Rated power output (RMS) 100 Watt Max.
Minimum load 2 – 8 Ohm
Signal-to-noise ratio (SNR) > 102 dB
Distortion < 0.02 %
Frequency response Bas 20 Hz – 200 Hz and 20 Hz – 20 Khz.
Auto turn-on sensitivity 0.600 Volts
Circuit Topology TPA3116 chip
Amplifier classification D
Speaker output channels Subwoofer passive
Crossover frequency adjustment 20 Hz – 200 Hz
Power requirements DC 12 – 24 Volts
Dimensions (D x W x H) 57 x 103 x 43 mm
plus PBTL & SUB Switchable
min Only RCA input
Article number M04
EAN 6976136960379
Additional information
Rated power output (RMS)100 Watt Max.
Minimum load2 – 8 Ohm
Signal-to-noise ratio (SNR)> 102 dB
Distortion< 0.02 %
Frequency responseBas 20 Hz – 200 Hz and 20 Hz – 20 Khz.
Auto turn-on sensitivity0.600 Volts
Circuit TopologyTPA3116 chip
Amplifier classificationClass-D
Speaker output channelsSubwoofer passive
Crossover frequency adjustment20 Hz – 200 Hz
Power RequirementsDC 12 – 24 Volts
Dimensions (D x W x H)57 x 103 x 43 mm
