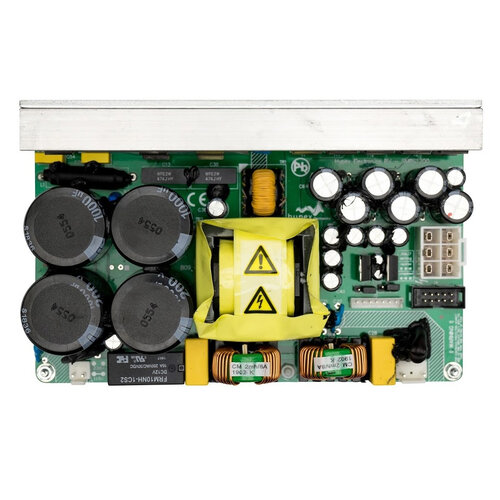

Hypex SMPS1200A700 2 x 85 VDC 1200 Watt Switch Mode Power Supply

Highlights

• High efficiency
• Selectable input voltage range
• Extremely small form factor
• Low EMI

Product details

Hypex SMPS1200A700 2 x 85 VDC 1200 Watt Switch Mode Power Supply

Key features are high efficiency over the entire load range, extremely small form factor, low weight and very low radiated and conducted EMI. The SMPS also features an advanced over current protection which in case of temporary overload limits the output current, only when the overload condition remains for a longer time the supply will enter hiccup mode until the overload condition disappears. This feature combined with large primary electrolytic buffer capacitors leads to the capability of delivering high dynamic headroom power to the connected amplifier.

The SMPS also includes an auxiliary isolated supply and a control circuit directly interfacing with the UcD amplifier modules. The supply is triggered for normal operation or latched off in case of critical fault via in built-in actuators. The SMPS is optimized from the first phase of design to final implementation to realize the lowest possible EMI signature required of the most demanding audio applications.

Together with the UcD700HG HxR module, this SMPS fits perfectly in the Hypex DIY Monoblock Case.

Features

• Advanced over current protection
• Remote controlled operation
• Low weight
• Overcurrent protection
• Compact design

What’s In The Box

• SMPS1200A700 power supply
• Cable Set SMPS1200

Designed to work with

• UcD700HG HxR
