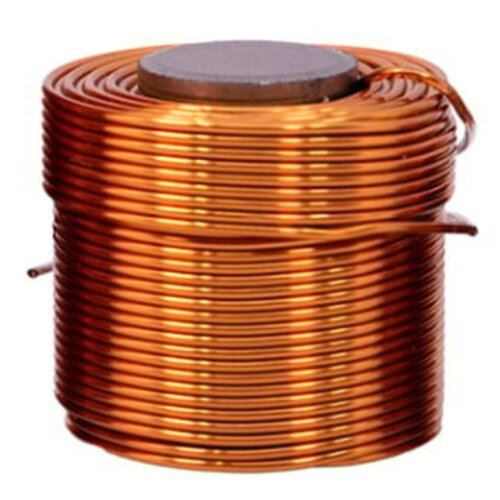

Jantzen Audio 000-2418 | 1,5 mH | 0,13 Ω | 3% | 14 AWG | Iron Core Coil

Highlights

• High-purity 14 AWG copper wire
• Low DCR of 0.125 Ω for minimal efficiency loss
• 3% inductance tolerance for precise crossover tuning
• Optimized for bass & mid sections in loudspeaker crossovers

Product details

Jantzen Audio 000-2418 | 1,5 mH | 0,125 Ω | 3% | 14 AWG | Iron Core Coil

This Jantzen Audio Iron Core Coil is a meticulously engineered crossover component designed to deliver uncompromised audio performance. Crafted with high-purity 14 AWG copper wire wrapped around a Permite core, the coil boasts a 1.5 mH inductance with a tight 3% tolerance. The coil’s exceptionally low DCR of 0.125 Ω ensures that the driver’s damping factor is not altered, and the efficiency loss is kept to a bare minimum. The non-ferrite Permite core significantly reduces hysteresis compared to ferrite core coils, enhancing power handling capacity while maintaining high fidelity. Given its power handling is determined by the core size and wire thickness, this coil is specifically optimized for the bass and mid-sections of loudspeaker crossovers, making it an ideal choice for audio enthusiasts looking to build or upgrade their speaker systems with precision components.
