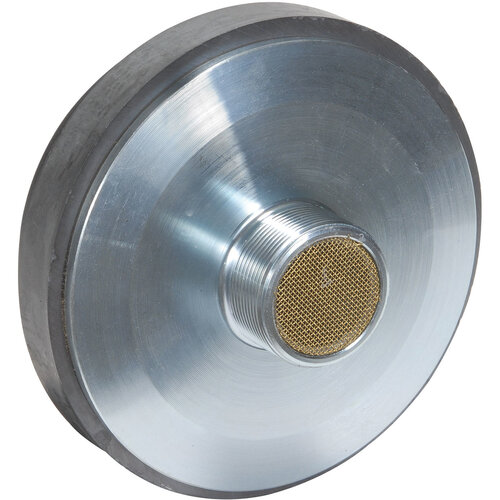

JBL Selenium D220Ti-8 Compression Driver
€122.45
Selenium’s D220Ti-8 is a high quality compression driver offering excellent efficiency and low distortion. It is recommended for use in studio monitors, stage boxes, and sound reinforcement in small to medium rooms.
16 in stock
Highlights
- Titanium diaphragm for durability and extended HF response
- Optimized phase plug eliminate phase cancellation problems
- High-temperature voice coil materials ensure reliability
- Smooth, extended frequency response
- Easy diaphragm replacement
- D220Ti is compatible with any Selenium horn with model number ending in “25”
- Standard 1-3/8″-18 TPI screw-on mounting
Product Details
JBL Selenium D220Ti 1″ Titanium Horn Driver 8 Ohm 1-3/8″-18
The Selenium D220Ti-8 horn driver’s diaphragm is formed from pure, rigid, light, and extremely thin titanium (0.025 mm). To avoid stress and distortion, the suspension has specially designed reinforcement. An injected-molded phase plug is optimized to eliminate undesirable phase cancellations.
The D220Ti-8’s ceramic magnetic assembly effectively concentrates flux in the gap, and highest motor strength efficiency is achieved through the use of FEA (Finite Element Analysis). A voice coil manufactured in CCAW (Copper Clad Aluminum Wire) and wound on a polyimide former assures great stability and thermal resistance, and the moving assembly has a perfect auto-centering characteristic that makes replacement easy if required. Standard 1-3/8″-18 TPI screw-on mounting.
Specifications
| Article number | D220Ti-8 |
| EAN | 8785256837588 |
| Tweeter Type | Horn Tweeter |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 80 Watts |
| Power Handling (max) | 160 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 109 dB |
| Frequency Response | 1,000-21,000 Hz (no crossover) |
| Overall Outside Diameter | 4.53" |
| Depth | 2", 2.75" including threaded "nose". |
| Article number | D220Ti-8 |
| EAN | 8785256837588 |
| Tweeter Type | Horn Tweeter |
|---|---|
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 80 Watts |
| Power Handling (max) | 160 watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 109 dB |
| Frequency response | 1,000-21,000 Hz (no crossover) |
| Overall Outside Diameter | 4.53″ |
| Depth | 2″, 2.75″ including threaded “nose”. |
