L-Pad Attenuator 3/8″ Shaft 16 Ohm

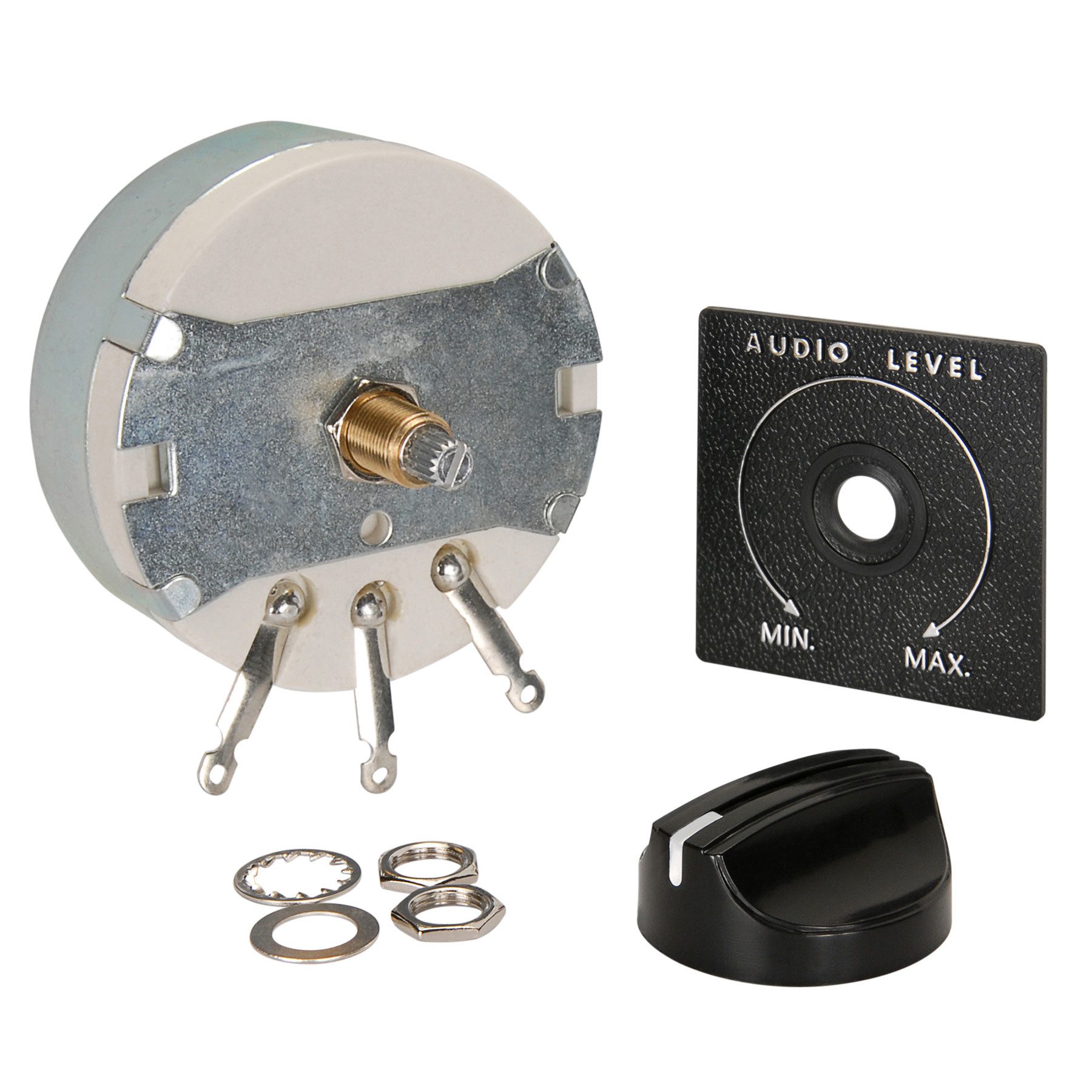

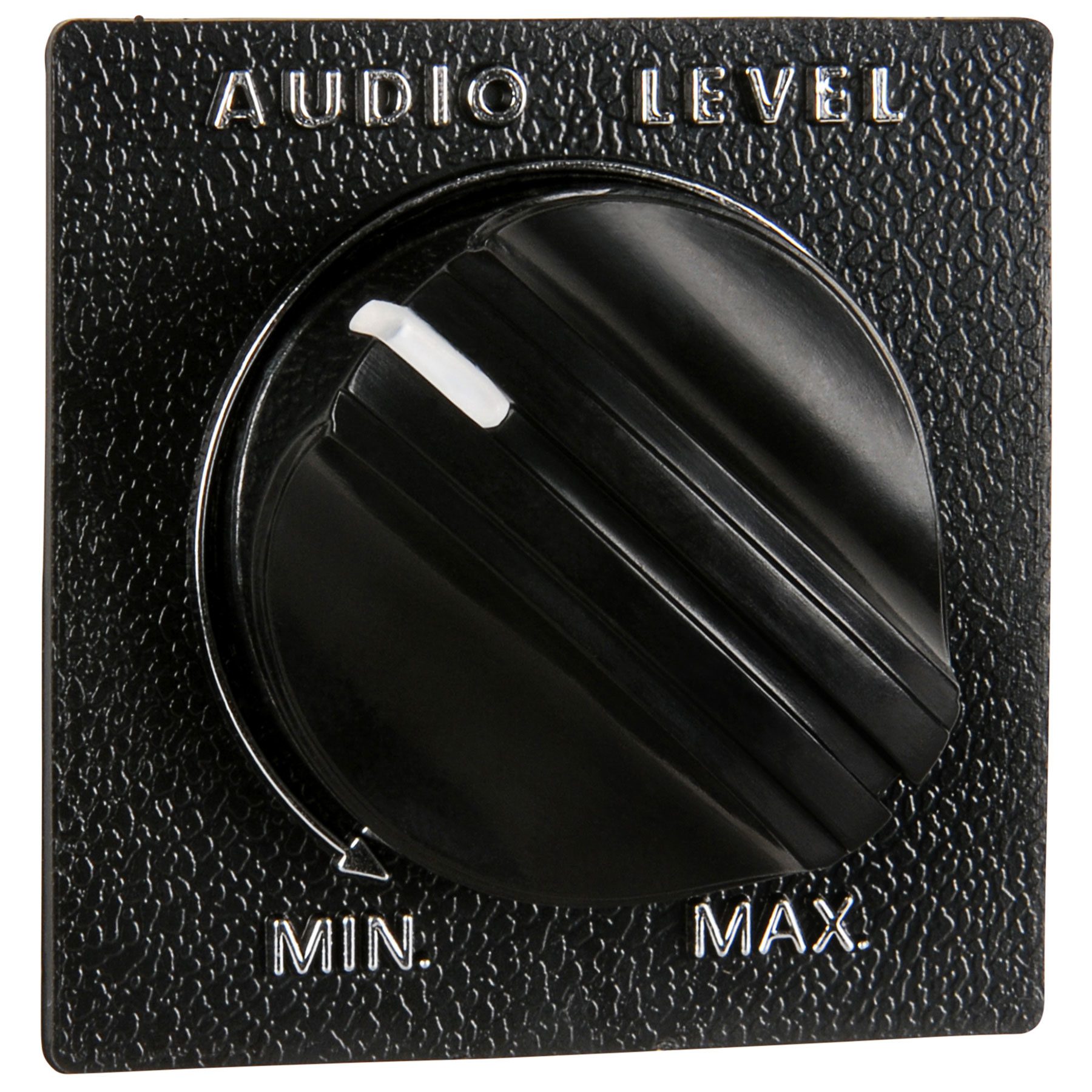

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance at a constant 16 ohm load. This 100 watt RMS L-pad is designed to be used with 16 ohm loads, features a 3/8″ shaft length, and comes with mounting hardware. HighlightsAdd volume controls to any speakerGreat for speaker design tweakingMaintains 16 ohm impedanceMounting hardware included Product details Speaker L-Pad Attenuator 100W Mono 3/8″ Shaft 16 Ohm L-pads adjust the relative volume of drivers connected to them by placing added resistance in series. At the same time, a counter-resistance is placed in parallel with the driver to maintain a constant impedance which allows the original crossover design to be used. L-pads are to be placed in between the amplifier and speaker, or in between the crossover and driver. This particular L-pad is rated at 100 watts RMS, is designed to be used with 16 ohm loads, features a 3/8″ shaft length, and comes with mounting hardware, faceplate, and volume control knob. Dimensions: 2.5″ diameter, 1-1/8″ depth.Show more Show less
