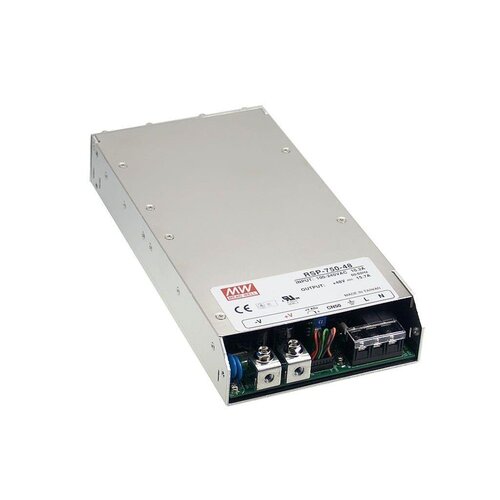

Mean Well RSP-750-48 Switched Mode Power Supply
€329.95
The Mean Well RSP-750-48 is a high-efficiency, reliable, and versatile 750 watt, 48 volt switched-mode power supply (SMPS). It is ideal for a wide range of applications.
1 in stock
Description
Highlights
- Input voltage: 90-264VAC, 50/60Hz
- Output voltage: 48VDC
- Output current: 15.7A
- Efficiency: Up to 92%
- Switching frequency: 90 kHz
- Protections: Short circuit, overload, over voltage, over temperature, fan alarm
- Dimensions: 100 x 125 x 38 mm (3.94 x 4.92 x 1.50 inches)
- Weight: 1.1 kg (2.43 lbs)
Product details
Mean Well RSP-750-48 Switched Mode Power Supply
The Mean Well RSP-750-48 is a 750 watt, 48 volt, single output switched-mode power supply (SMPS). It is a high efficiency power supply with a switching frequency of 90 kHz. It features universal AC input, short circuit, overload, over voltage, over temperature and fan alarm protections. It also has a built-in 12V/0.1A auxiliary power, built-in active PFC function, built-in remote ON-OFF control, and built-in remote sense function.
Specifications
| Article number | RSP-750-48 |
| EAN | 4711287420578 |
| Max Output Power | 753.6W |
| Output Voltage (V) | 43 ~ 55V |
| Output Current (A) | 0 ~ 15.7A |
| Max Output current (A) | 15.7A |
| Efficiency | 0.92 |
| Ripple & noise (max.) | 150mVp-p |
| Mains voltage input | 90 ~ 264VAC – 127 ~ 370VDC |
| Protection | Overload / Over Voltage / Over temperature |
| Type of cooling | Built-in DC fan |
| Auxiliary power | 12V @ 0.1A ; tol. 10% |
| Connector type | Screw terminals |
| Dimensions (D x W x H) | 250*127*41mm |
| Article number | RSP-750-48 |
| EAN | 4711287420578 |
Additional information
| Max Output Power | 753.6W |
|---|---|
| Output Voltage (V) | 43 ~ 55V |
| Output Current (A) | 0 ~ 15.7A |
| Max Output current (A) | 15.7A |
| Efficiency | 0.92 |
| Ripple & noise (max.) | 150mVp-p |
| Mains voltage input | 90 ~ 264VAC – 127 ~ 370VDC |
| Protection | Overload / Over Voltage / Over temperature |
| Type of cooling | Built-in DC fan |
| Auxiliary power | 12V @ 0.1A ; tol. 10% |
| Connector type | Screw terminals |
| Dimensions (D x W x H) | 250*127*41mm |
