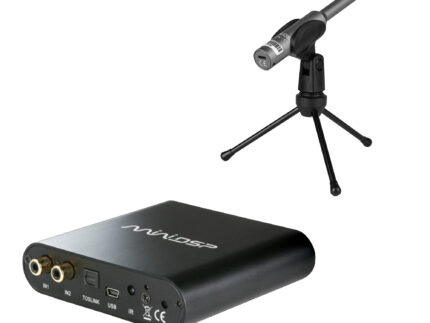

miniDSP 2×4 HD + UMIK-1 Measurement Bundle – DSP Processor met USB Meetmicrofoon

The miniDSP 2×4 HD + UMIK-1 Bundle combines a compact 2-in/4-out high-resolution DSP audio processor with a calibrated USB measurement microphone, giving you the tools to measure, tune and optimize loudspeakers, subwoofers and room response.

Highlights of the miniDSP 2×4 HD + UMIK-1 Bundle

• Bundle with miniDSP 2×4 HD DSP processor and UMIK-1 omnidirectional USB measurement microphone
• 32-bit floating point Analog Devices SHARC DSP with FIR and IIR filter capability
• USB audio up to 192 kHz, TOSLINK digital input, stereo RCA input and four RCA outputs
• UMIK-1 plug and play USB microphone with unique calibration files for accurate measurements
• Four onboard presets, real-time control and Windows/Mac compatible software

Product details miniDSP 2×4 HD + UMIK-1 Bundle

miniDSP 2×4 HD + UMIK-1 Bundle DSP processor with calibrated USB measurement microphone

This bundle is designed for users who want to measure and correct their audio system with a practical, compact setup. The UMIK-1 captures reliable room and speaker data for acoustic measurements, while the 2×4 HD applies DSP processing for system equalization, crossover setup, subwoofer integration and multi-sub integration.

The miniDSP 2×4 HD is built around a 400 MHz Analog Devices ADSP21489 floating point SHARC processor. It supports parametric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad programming, delay on each output channel and assignable FIR filter taps. This makes it a powerful choice among compact DSP modules for two-way active loudspeakers, sub-sat systems and room correction projects.

Connectivity is flexible for both desktop and home audio systems. The 2×4 HD offers asynchronous USB audio streaming up to 192 kHz, a TOSLINK optical input, stereo RCA analog input and four RCA analog outputs. It also includes USB control for Windows and Mac, firmware upgrade capability, four preset memories and an IR learning remote function for input selection, volume, mute and preset recall.

The UMIK-1 is a USB-powered omnidirectional measurement microphone with an integrated 24-bit ADC at 48 kHz, driverless support for major operating systems and compatibility with measurement software such as Room EQ Wizard. Each microphone has unique calibration files, including on-axis and 90-degree calibration options, with a calibrated frequency response of 20 Hz to 20 kHz ±1 dB. The microphone package includes the UMIK-1, a 1.5 m shielded USB cable, mini tripod and foam windscreen.

What’s in the box?

• miniDSP 2×4 HD DSP processor
• miniDSP UMIK-1 USB measurement microphone
