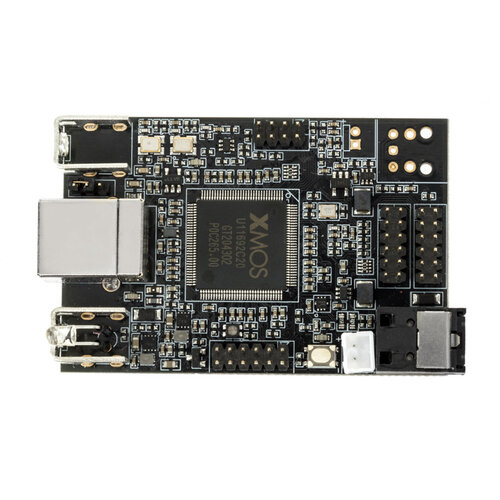

miniDSP MCHStreamer Lite Multi-Channel USB Interface Kit
€149.95
The miniDSP MCHStreamer Lite, a simplified version of our MCHStreamer, is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages years of XMOS product development to achieve a rock solid performance in all configurations. Packaged on a tiny 40x62mm PCB, the MCHStreamer Lite is a perfect fit for OEM/DIY integration or as a testing tool for your R&D team.
Available on backorder
Highlights
- Multi-channel USB audio interface (up to 24×24)
- Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
- Native support up to 32bit / 384kHz
- PDM to I2S converter for up to 16 MEMS microphones
- Multichannel DSD (up to 8ch) support
- USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
- OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
- Toslink (optical) and SPDIF (coax) transmitter
- Flexible board powering option: USB powered or External DC input power
Product details
miniDSP MCHStreamer Lite Multi-Channel USB Interface Kit
By loading one of the miniDSP-provided firmware packages, MCHStreamer Lite supports I2S, TDM, DSD and PDM data formats for input and output. In addition, optical TOSLINK, ADAT and S/PDIF (coax), are supported for output only. This USB Audio Class 2 (UAC2) compliant interface truly is a powerful tool for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from PDM signal to I2S for up to 16 MEMS microphones: a neat tool for beamforming algorithm development.
Specifications
| Article number | MCHStreamer Lite |
| EAN | 8785256859139 |
| Product type | USB Digital Interface DAC |
| Outputs | Optical (Toslink/ADAT) |
| USB Compatibility | Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle) |
| Processing resolution & sample rate | 24bit up to 192kHz. Please consult user manual for more details |
| Power requirements | USB powered OR 5Vdc external supply via header – 300mA requirement |
| Dimensions | 13 x 40 x 62 mm |
