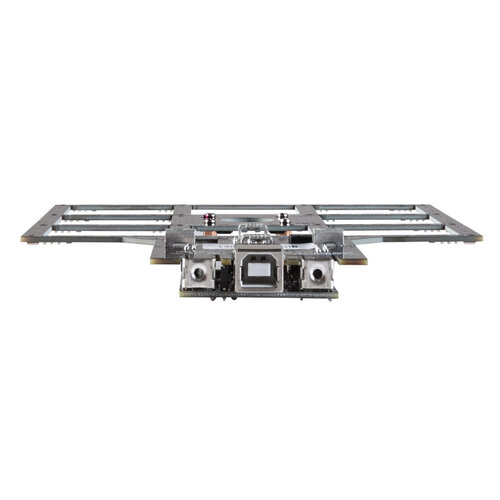

miniDSP UMA-16 v2 USB Mic Array
€369.95
The miniDSP UMA-16 v2 is the updated version of our sixteen-channel microphone array with plug&play USB audio connectivity. With its onboard XMOS interface, the UMA-16 is the perfect fit for the development of beam-forming algorithms or your DIY acoustic camera.
Available on backorder
Highlights
- Multichannel USB microphone array for voice command
- 16 channels of RAW audio for development of custom beamforming algorithms
- High quality MEMS from Knowles SPH1668LM4H
- USB to PDM conversion for up to 16 x PDM MEMS microphones
- Center Hole for USB camera (Not provided)
- Sample Matlab code to get started
Product details
MiniDSP UMA-16 USB Mic Array
Its system architecture consists of two core elements:
– A microphone PCB with 16 x Knowles SPH1668LM4H MEMS microphones in a uniform rectangular array (URA). A center hole fits an optional USB camera for applications such as acoustic cameras. The microphone PCB is a simple 2-layer design that can easily be customized to your needs by following our schematics included in the user manual.
– Stacked on top of the mic array is the MCHStreamer Lite USB interface. This XMOS XCORE interface allows for a high quality PDM to PCM conversion and presents all 16 channels of raw audio to the USB interface.
What’s in the box?
1 x UMA-16 USB microphone array interface
1 x 1.5m USB miniUSB cable
1 x 12V power supply with EU/UK/US plugs
Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased.
Specifications
| Article number | UMA-16 |
| EAN | 8785256846931 |
| Article number | UMA-16 |
| EAN | 8785256846931 |
