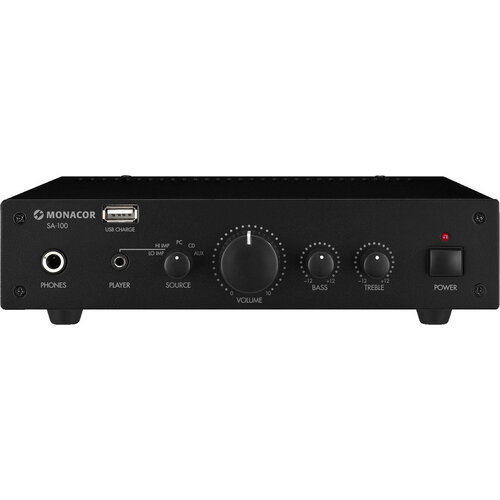

Monacor SA-100 mini stereo amplifier
€169.95
Monacor SA-100 | 25WPC
1 in stock
Description
Highlights
- Silent operation due to fanless cooling concept
- Additional 3.5 mm connection with switchable sensitivity on the front panel
- Audio source selector switch
- Controls for volume, bass and treble
- 6.3 mm headphone output
- Robust metal housing
Product details
Inputs: 140 mV/46 kΩ (PC, CD, aux) 140 mV/12 kΩ, 25 mV/32 kΩ (player)

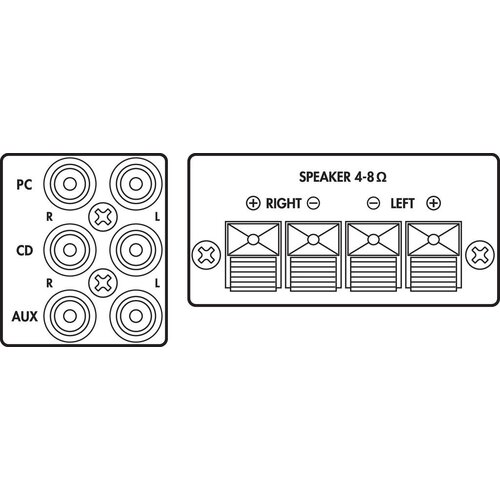

Connections: 1 x RCA L/R (PC), 1 x RCA L/R (CD), 1 x RCA L/R (aux), 1 x 3.5 mm jack (player), 4 x spring-load. speaker term. (speakers)
Specifications
| Article number | SA-100 |
| EAN | 4007754226942 |
| Rated power output (RMS) | <p>2 x 25 watts at 4 ohms<br />2 x 20 watts at 8 ohms</p> |
| Bridged power output (RMS) | – |
| Minimum load | 4 ohms |
| Signal-to-noise ratio (SNR) | > 70 dB |
| Distortion | – |
| Distortion bridged | – |
| Efficiency | – |
| Frequency response | 20 – 20,000 Hz |
| Input impedance | 46k ohms (PC/CD/aux) 12k ohms, 32k ohms (player) |
| Input sensitivity | 140 mV (PC/CD/aux) 140 mV, 25 mV (player) |
| Auto turn-on sensitivity | – |
| DSP | – |
| DAC | – |
| Maximum sampling rate | – |
| Circuit Topology | – |
| Amplifier classification | Class B |
| Speaker output channels | 2 |
| Subwoofer output channel | – |
| Analog in/out | -/- |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 3/- |
| AUX in/out | 2/- |
| Bus in/out | -/- |
| XLR in/out | -/- |
| USB | check only charging |
| Memory card slot | – |
| Network connection | – |
| Headphone jack | check 6.3 mm |
| Subwoofer pre-out | – |
| Bluetooth | – |
| NFC | – |
| Wi-Fi | – |
| Banana plug compatible | – |
| Remote control | – |
| App control | – |
| Auto turn-on | – |
| Accepted file formats | – |
| Equalizer (EQ) adjustment | check |
| Equalizer (EQ) profiles | – |
| Multi zone/room | – |
| Crossover frequency adjustment | – |
| Bridge mode | – |
| Power requirements | 230 VAC, 50 Hz |
| Power inlet connector | – |
| Power consumption | 150 VA |
| Stand-by power consumption | – |
| Dimensions (D x W x H) | 250 x 212 x 56 mm |
| Case material | Metal |
| Article number | SA-100 |
| EAN | 4007754226942 |
Additional information
| Rated power output (RMS) | 2 x 25 watts at 4 ohms2 x 20 watts at 8 ohms |
|---|---|
| Minimum load | 4 Ohms |
| Signal-to-noise ratio (SNR) | > 70 dB |
| Frequency response | 20 – 20,000 Hz |
| Input impedance | 46k ohms (PC/CD/aux) 12k ohms, 32k ohms (player) |
| Input sensitivity | 140 mV (PC/CD/aux) 140 mV, 25 mV (player) |
| Amplifier classification | Class-B |
| Speaker output channels | 2 |
| Analog in/out | -/- |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 3/- |
| AUX in/out | 2/- |
| Bus in/out | -/- |
| XLR in/out | -/- |
| USB | check only charging |
| Headphone jack | check 6.3 mm |
| Equalizer (EQ) adjustment | check |
| Power Requirements | 230 VAC, 50 Hz |
| Power consumption | 150 VA |
| Dimensions (D x W x H) | 250 x 212 x 56 mm |
| Case material | Metal |
