Monacor SLA-35 pre-amplifier
€72.95
Monacor SLA-35 | Pre-Amp | Level & Impedance Matching
2 in stock
Description
Highlights
- Silent operation due to fanless cooling concept
- Additional 3.5 mm connection with switchable sensitivity on the front panel
- Audio source selector switch
- Controls for volume, bass and treble
- 3 mm headphone output
- Robust metal housing
Product details
Volume distortions or volume losses may occur when connecting smartphones, mobile phones, tablet PCs and MP3 players to an amplifier or a mixer. Due to the correct setting of impedance and gain, the SLA-35 is able to provide a better sound.
Gain: 0.1-10 (±20 dB) continuously adjustable, additionally -5.6 dB, switchable

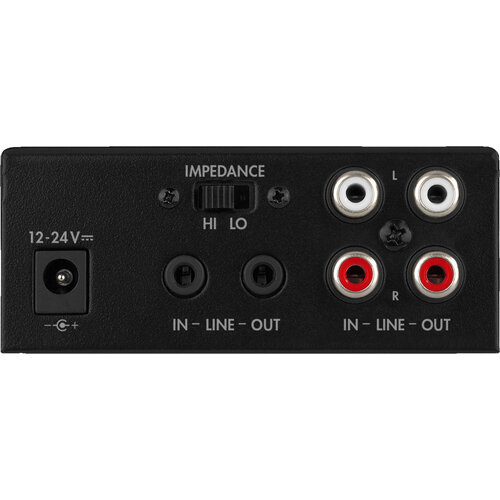

Inputs: 1 x RCA L/R, 1 x 3.5 mm jack
Outputs: 1 x RCA L/R, 1 x 3.5 mm jack
Specifications
| Article number | SLA-35 |
| EAN | 4007754231755 |
| Rated power output (RMS) | – |
| Bridged power output (RMS) | – |
| Minimum load | – |
| Signal-to-noise ratio (SNR) | >83 dB |
| Distortion | <0,035 THD |
| Distortion bridged | – |
| Efficiency | – |
| Frequency response | 5 – 50000 Hz, –1dB |
| Input impedance | 35k ohms (HI) / 8,1k ohms (LO) (switchable) |
| Input sensitivity | – |
| Auto turn-on sensitivity | – |
| DSP | – |
| DAC | – |
| Maximum sampling rate | – |
| Circuit Topology | – |
| Amplifier classification | Class B |
| Speaker output channels | – |
| Subwoofer output channel | – |
| Analog in/out | -/- |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 1/1 |
| AUX in/out | 1/1 |
| Bus in/out | -/- |
| XLR in/out | -/- |
| USB | – |
| Memory card slot | – |
| Network connection | – |
| Headphone jack | – |
| Subwoofer pre-out | – |
| Bluetooth | – |
| NFC | – |
| Wi-Fi | – |
| Banana plug compatible | – |
| Remote control | – |
| App control | – |
| Auto turn-on | – |
| Accepted file formats | – |
| Equalizer (EQ) adjustment | – |
| Equalizer (EQ) profiles | – |
| Multi zone/room | – |
| Crossover frequency adjustment | – |
| Bridge mode | – |
| Power requirements | 12 – 24 VDC |
| Power inlet connector | DC jack |
| Power consumption | – |
| Stand-by power consumption | – |
| Dimensions (D x W x H) | 103 x 88 x 37 mm |
| Case material | Metal |
| Article number | SLA-35 |
| EAN | 4007754231755 |
Additional information
| Signal-to-noise ratio (SNR) | >83 dB |
|---|---|
| Distortion | <0,035 THD |
| Frequency response | 5 – 50000 Hz, –1dB |
| Input impedance | 35k ohms (HI) / 8,1k ohms (LO) (switchable) |
| Amplifier classification | Class-B |
| Analog in/out | -/- |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 1/1 |
| AUX in/out | 1/1 |
| Bus in/out | -/- |
| XLR in/out | -/- |
| Power Requirements | 12 – 24 VDC |
| Power inlet connector | DC Jack |
| Dimensions (D x W x H) | 103 x 88 x 37 mm |
| Case material | Metal |
