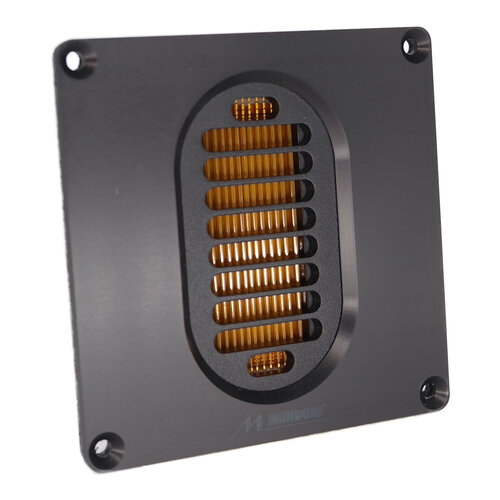

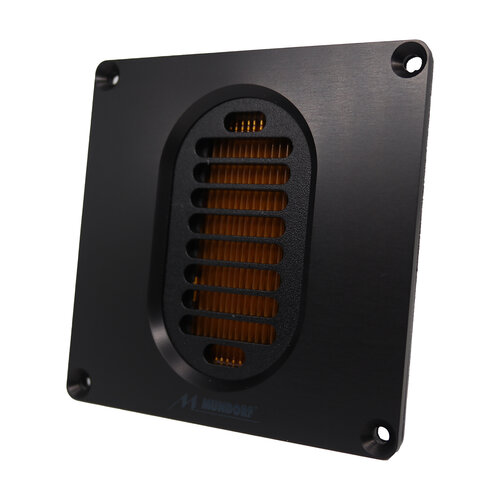

Mundorf AMT23CM1.1-R Air Motion Tweeter (AMT)
€629.95
Mundorf AMT23CM1.1-R Air Motion Tweeter (AMT)
Available on backorder
Description
Highlights
- Very low distortion
- Very flat impedance curve
- Widespread directivity
- Low x-over frequency
Product details
Mundorf offers today’s largest selection of Air Motion Transformer (AMT) tweeters worldwide. The different lines were developed for certain applications and requirements. All Mundorf HiFi AMT tweeters have two superior key properties: excellent transient response and outstanding low distortion ratio. The differences lie mainly in their frequency ranges, sound pressure levels and dispersion angles.
With its efficiency of 90 dB the AMT23CM1.1-R needs almost no level adjustment. The high SPLmax meets the highest requirements.
Specifications
| Article number | AMT23CM1.1-R |
| EAN | 0691046949608 |
| Tweeter Type | Air Motion Transformer |
| Tweeter Series | hifiAMT Concert |
| Cone / Dome Diameter | – |
| Power Handling (RMS) | 125 Watts |
| Power Handling (max) | – |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency Response | 1300 Hz – 33 kHz |
| DC Resistance (Re) | – |
| Voice Coil Inductance (Le) | – |
| Mechanical Q (Qms) | – |
| Electromagnetic Q (Qes) | – |
| Total Q (Qts) | – |
| Overall Outside Diameter | 100 x 100 mm |
| Cutout Diameter | – |
| Depth | 43 mm |
| Mounting Type | – |
| Diaphragm Material | – |
| Recommended cut frequency | 2,200 / 2,700 (@12 / 6 dB.Oct) |
| Article number | AMT23CM1.1-R |
| EAN | 0691046949608 |
Additional information
| Tweeter Type | Air Motion Transformer |
|---|---|
| Tweeter Series | hifiAMT Concert |
| Power Handling (RMS) | 125 Watts |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency response | 1300 Hz – 33 kHz |
| Overall Outside Diameter | 100 x 100 mm |
| Depth | 43 mm |
| Recommended cut frequency | 2,200 / 2,700 (@12 / 6 dB.Oct) |
