Mundorf P50-18 | 18 mH | 5,77 Ω | 3% | 24 AWG | MCoil Ferrite PipeCore crossover coil
€14.95
MCoil Foil coils are wound layer by layer and are of particularly low-capacitive, even though their similarity to our foil wound capacitors would suggest otherwise. Ferrite Cores are sintered from a metal-plastic-powder.
1 in stock
Highlights
- Solid core copper wire coil core
- Made in Germany
- Compact dimensions and a reasonable price/performance-ratio
Product details
Mundorf P50-18 | 18 mH | 5,77 Ω | 3% | 24 AWG | MCoil Ferrite PipeCore crossover coil
The smaller MCoil FERRITE PipeCore Coils made from solid core copper wire, have been specially developed for mid, low and parallel applications, for which compact dimensions and a reasonable price/performance-ratio are of essential importance as given for, e.g., adjustment devices or car audio crossovers.
The tonal qualities of the F series and its much satisfying music performance can yet be enhanced by Baked Wire Treatment as shown for the BF series.
Specifications: OFC-Copper 99.99% • Coil form: PA, fibre-glass reinforced • Coil body heat resistant up to max. 230°C/446°F Ø 0,50 mm • Body: F4023
Specifications
| Article number | P50-18 |
| EAN | 4060158010814 |
| Coil type | Ferrite core coil |
| Inductance | 18 mH |
| DCR | 5.77 ohms |
| Tolerance | 3% |
| Wire diameter | 24 AWG |
| Power handling (RMS) | 100 watts |

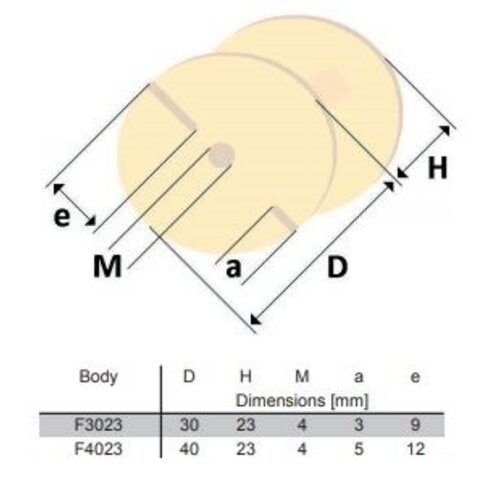

| Dimensions: Ø * H (mm) | 40 x 23 |
| Coil form | PA, fibre-glass reinforced |
| Body | F4023 |
| Article number | P50-18 |
| EAN | 4060158010814 |
| Coil type | Ferrite core coil |
|---|---|
| Inductance | 18 mH |
| DCR | 5.77 ohms |
| Tolerance | 3% |
| Wire diameter | 24 AWG |
| Power Handling (RMS) | 100 Watts |
| Dimensions: Ø * H (mm) | 40 x 23 |
| Coil form | PA, fibre-glass reinforced |
| Body | F4023 |
