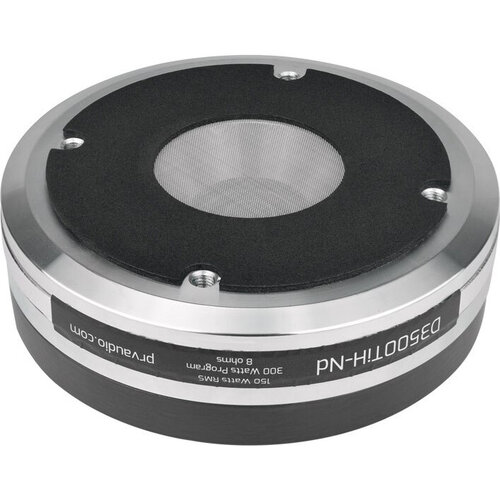

PRV Audio D3500TiH-Nd Compression Driver
€229.95
The PRV Audio D3500TiH-Nd is a high-performance professional compression driver engineered for demanding audio applications. With a robust 3.5-inch voice coil and a 2-inch exit throat, this driver excels in delivering powerful, clear, and articulate sound. Its hybrid titanium and Mylar diaphragm ensures both durability and precise audio reproduction, making it ideal for high-output sound reinforcement systems.
10 in stock
Highlights of the PRV Audio D3500TiH-Nd
- 3.5-inch voice coil paired with a 2-inch exit for high output
- 150 watts continuous and 300 watts program power handling
- Exceptional 110 dB sensitivity at 2.83V/1m
- Hybrid titanium/Mylar diaphragm and lightweight neodymium magnet
Product details PRV Audio D3500TiH-Nd
PRV Audio D3500TiH-Nd Professional Compression Driver 8 Ohm
Designed for professionals seeking uncompromising performance, the D3500TiH-Nd stands out in the tweeters category with its advanced hybrid diaphragm construction. The combination of titanium and Mylar materials delivers a perfect balance between stiffness and flexibility, resulting in a clear and extended high-frequency response. The large 3.5-inch voice coil, made with CCAW wire and Kapton former, further boosts power handling and thermal stability for demanding live and installed sound systems.
The D3500TiH-Nd features an ultra-efficient neodymium magnet, contributing to its lightweight yet powerful design. With a compact diameter of 138 mm and a depth of just 62 mm, it is easy to integrate into a wide range of speakers or custom enclosures, making it a perfect choice for portable PA arrays and high-end home audio systems alike. The high sensitivity of 110 dB ensures maximum output with minimal amplifier power, optimizing performance in any setup.
Engineered for versatility, this compression driver is rated for 150 watts continuous power and 300 watts program power, supporting robust audio delivery in both touring and fixed installations. Its recommended high-pass crossover at 1,000 Hz (with a 12 dB/octave slope) allows for seamless integration with woofers and other system components, ensuring a balanced and dynamic soundstage across the entire frequency spectrum.
The PRV Audio D3500TiH-Nd is ideal for anyone building or upgrading DIY speaker kits, professional sound reinforcement systems, or custom installations. Its impressive combination of power, efficiency, and precision makes it a top-tier choice for audio enthusiasts, installers, and pro audio engineers seeking reliable high-frequency performance in their loudspeaker designs.
Compatible with:
Specifications
| Article number | D3500TiH-Nd |
| EAN | 0810075521115 |
| Tweeter Type | Compression driver |
| Cone / Dome Diameter | 89 mm |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 110 dB |
| Frequency Response | 800-18.000 Hz |
| Overall Outside Diameter | 138 mm |
| Depth | 62 mm |
| Mounting Type | Screws |
| Diaphragm Material | Ti+Py |
| plus | A very high sensitivity of 110 dB |
| Article number | D3500TiH-Nd |
| EAN | 0810075521115 |
| Tweeter Type | Compression Driver |
|---|---|
| Cone / Dome Diameter | 89 mm |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 110 dB |
| Frequency response | 800-18.000 Hz |
| Overall Outside Diameter | 138 mm |
| Depth | 62 mm |
| Mounting type | Screws |
| Diaphragm Material | Ti+Py |
