REDCATT 101FCD 1″ Compression driver 8 ohms

Highlights of the REDCATT 101FCD

• 1.0″ compression driver with 8 ohm rated impedance
• High 109 dB sensitivity for strong SPL output
• 20 W AES, 40 W continuous and 80 W peak power handling
• Ferrite magnet system with polyimide/Kapton diaphragm construction
• Compact design with 102.5 mm overall diameter and 57.7 mm mounting depth
• Suitable for 2-way PA tops, portable column PA and commercial install systems

Product details REDCATT 101FCD

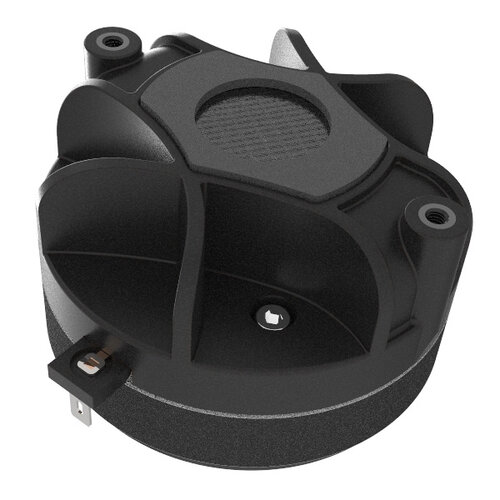

REDCATT 101FCD 1.0″ Compression Driver 8 Ohm

The REDCATT 101FCD is a high-frequency compression driver designed for compact professional loudspeaker systems. As a performance-focused choice for professional audio components, it delivers high SPL capability, high power handling and a space-efficient form factor for demanding builds.

Its ferrite-based magnetic circuit provides controlled operation of the polyimide diaphragm assembly, while the 1.0″ exit supports extended high-frequency response. The diaphragm is attached to a high-temperature Nomex voice coil former, helping the driver withstand the long-term power demands commonly found in professional audio applications.

With 109 dB sensitivity, 8 ohm impedance and a 2000 Hz resonant frequency, the 101FCD is well suited for efficient HF sections in horn/waveguide tweeter applications. Power handling is specified at 20 W AES, 40 W continuous and 80 W peak, giving system designers useful headroom in compact PA and installation designs.

The 101FCD has a 102.5 mm overall diameter, 76 mm bolt circle, two mounting holes and a 57.7 mm flange-to-rear depth. At 0.91 kg, it is practical for portable column PA, 2-way PA tops and commercial install speaker systems where a compact, high-output HF driver is required.
