Satori MW19P-8 Bass-midwoofer

Highlights

• Vented aerodynamic cast aluminum chassis for optimum strength and low compression
• Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
• Soft low damping rubber surround for optimum transient response
• Advanced BIMAX spider for improved linearity
• Powerful optimized low distortion neodymium motor system
• Non-conducting fiber glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and reduced distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires attached 180° apart for improved stability
• Vented pole piece for reduced compression
• High piston to chassis diameter ratio
• Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Product details

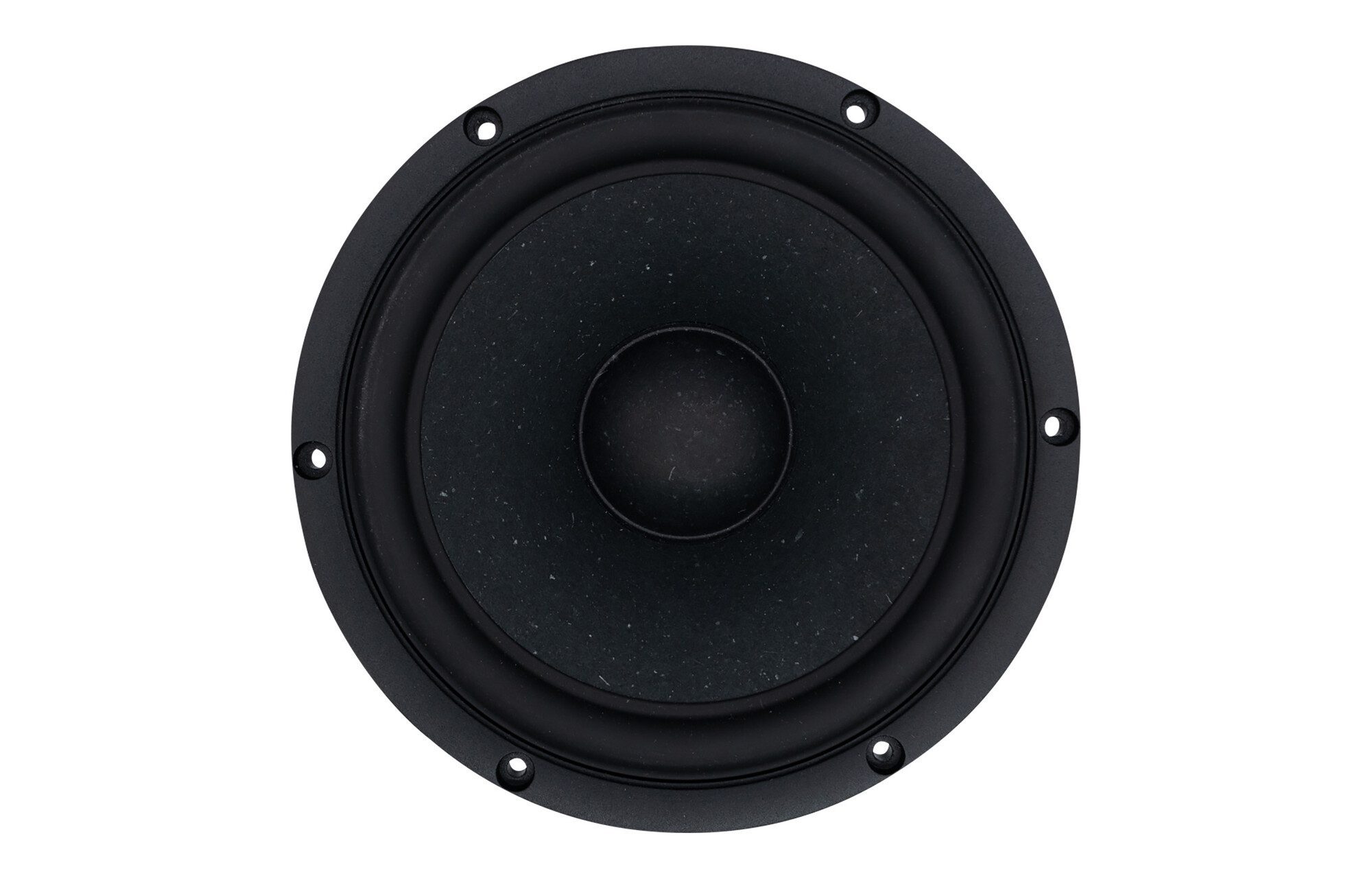

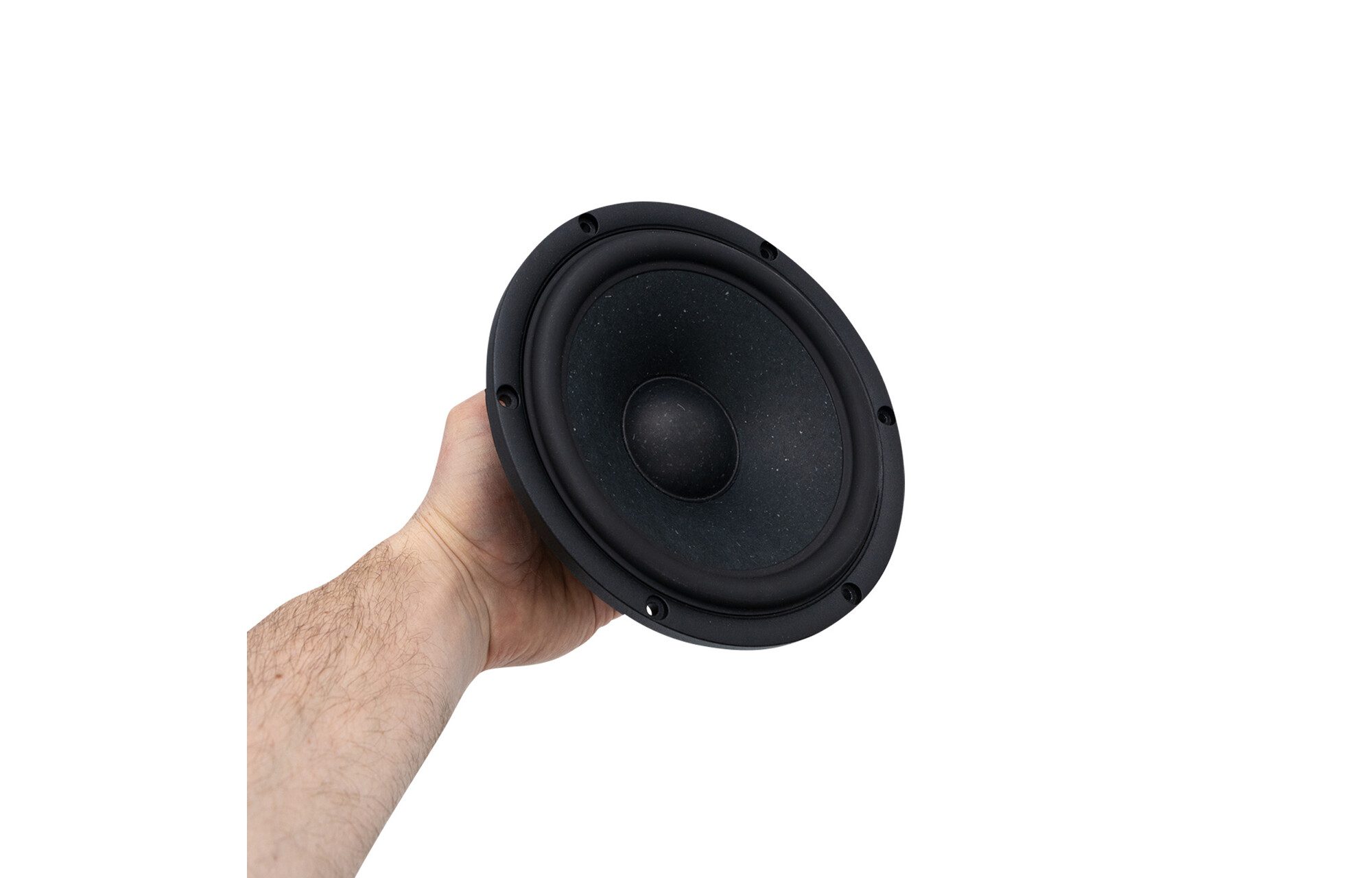

SB Acoustics Satori MW19P-8 7.5″ Egyptian Papyrus Cone Woofer

The SB Acoustics Satori MW19P-8 Midwoofer is a State of The Art Neodymium magnet 7.5″ 8 ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece.

Fitted with a 39mm voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. It provides a fabulous level wide response curve, making it a very flexible unit.

Specifications
