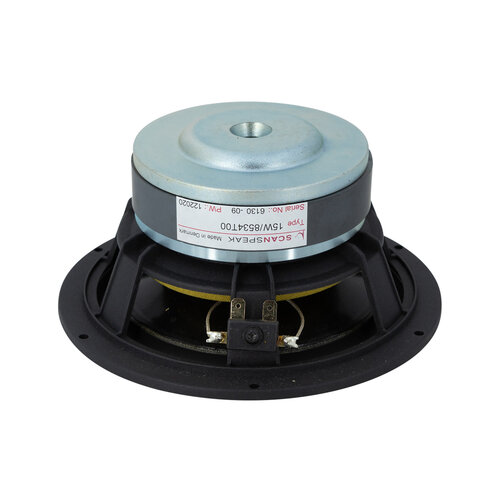

Scan-Speak Classic 15W/8534T00 Mid-range Woofer
€184.95
The Scan-Speak Classic 15W/8534T00 is a high-quality midwoofer that is suitable for a wide range of applications. The Phenomax cone is a new material developed by Scan-Speak that combines the best properties of Kevlar and carbon fiber. It is very rigid and has excellent damping characteristics, which results in a smooth and accurate midrange response. The 38mm voice coil is wound on a titanium former, which is more rigid than a conventional aluminium former. This helps to improve the woofer’s dynamic performance.
5 in stock
Highlights
- Excellent midrange performance
- Smooth and accurate sound
- Good dynamic performance
- Durable construction
Product details
Scan-Speak Classic 15W/8534T00 Mid-range Woofer
The Scan-Speak Classic 15W/8534T00 is a 15cm midwoofer that is part of the Classic series of speakers from Scan-Speak. It features a Phenomax cone, a 38mm voice coil on a titanium former, a symmetrical drive motor system, and a low loss linear rubber suspension. The woofer has a frequency response of 32-3000Hz, an impedance of 8ohms, and a sensitivity of 85.5dB.
The symmetrical drive motor system helps to reduce distortion and improve the woofer’s overall sound quality. The low loss linear rubber suspension also contributes to the woofer’s good performance. It is very compliant, which allows the woofer to move freely without generating excessive distortion.
Specifications
| Article number | 15W/8534T00 |
| EAN | 8785256848492 |
| Woofer Series | Scan-Speak Classic series |
| Woofer Type | Midwoofer |
| Power Handling (RMS) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 85.5 dB |
| Frequency Response | 32 – 3000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.8 Ω |
| Voice Coil Inductance (Le) | 0.26 mH |
| Resonant Frequency (Fs) | 32 Hz |
| Mechanical Q (Qms) | 3.6 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 11 g |
| Mechanical Compliance of Suspension (Cms) | 3.6 |
| Surface Area of Cone (Sd) | 98 cm² |
| BL Product (BL) | 5.5 Tm |
| Compliance Equivalent Volume (Vas) | 30 litres |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.6 kg/s |
| Overall Outside Diameter | 149 mm |
| Baffle Cutout Diameter | 130 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 3.5 mm |
| plus | "Phenomax" cone material |
| Article number | 15W/8534T00 |
| EAN | 8785256848492 |
| Woofer Series | Scan-Speak Classic series |
|---|---|
| Woofer Type | Midwoofer |
| Power Handling (RMS) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 85.5 dB |
| Frequency response | 32 – 3000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.8 Ω |
| Voice Coil Inductance (Le) | 0.26 mH |
| Resonant Frequency (Fs) | 32 Hz |
| Mechanical Q (Qms) | 3.6 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 11 g |
| Mechanical Compliance of Suspension (Cms) | 3.6 |
| Surface Area of Cone (Sd) | 98 cm² |
| BL Product (BL) | 5.5 Tm |
| Compliance Equivalent Volume (Vas) | 30 litres |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.6 kg/s |
| Overall Outside Diameter | 149 mm |
| Baffle Cutout Diameter | 130 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 3.5 mm |
