SEAS FROY MK3 MTM Components Pack
€1,299.95
The SEAS Froy MK3 is a high-end, two-way MTM (midwoofer-tweeter-midwoofer) speaker kit designed for audiophiles seeking exceptional sound quality in a compact bookshelf or stand-mount configuration. This kit features premium components from SEAS’ Excel line, ensuring precise audio reproduction and impressive bass performance.
Available on backorder
Highlights of the SEAS Froy MK3 Components Pack
- Includes premium SEAS Excel W15CY001 5.25″ magnesium cone midwoofers
- Equipped with SEAS T25CF002 “Millennium” 1″ fabric dome tweeters

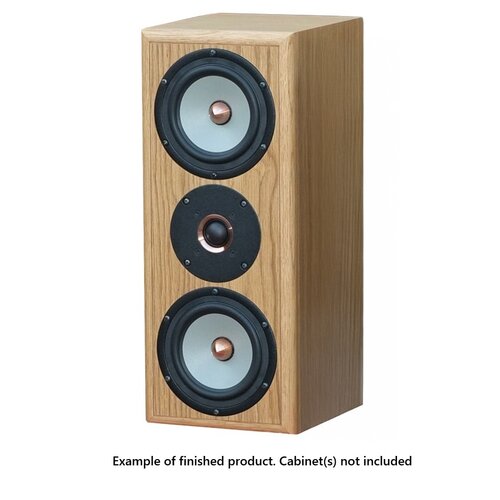

- Features a D’Appolito configuration for enhanced imaging and vertical dispersion control
- Pre-assembled premium crossovers with precise filtering
Product details SEAS Froy MK3 Components Pack
SEAS Froy MK3 Components Pack for MTM speaker design
The SEAS Froy MK3 Components Pack includes high-quality parts for building an exceptional two-way MTM speaker system. The kit features four SEAS W15CY001 5.25″ midwoofers and two SEAS T25CF002 “Millennium” tweeters, providing superior audio fidelity. The included crossovers use a second-order low-pass filter for the woofers and a third-order high-pass filter for the tweeter with a crossover frequency of 2.2 kHz. An additional parallel circuit mitigates the magnesium cone’s response peak for smooth output. The speaker cabinet design is a bass-reflex type with a rear-facing port, optimizing bass performance while minimizing front baffle area. The recommended internal volume per cabinet is approximately 10 liters. With a D’Appolito arrangement, this configuration offers excellent imaging and controlled dispersion. The Froy MK3 is renowned for delivering clear and balanced sound, with exceptional detail resolution and bass that exceeds expectations for its size. This kit is ideal for DIY audio enthusiasts looking to create a high-quality, compact speaker system.
Specifications
| Article number | FROY |
| EAN | 9508424545387 |
| Woofer Series | Woofers and Tweeter: Excel-serie |
| Nominal Diameter | Woofers 5.25", Tweeter 1" |
| Power Handling (RMS) | Woofers 70 Watts each, Tweeter 90 Watts |
| Power Handling (max) | Woofers short term 200 Watts, Tweeter short term 200 Watts |
| Impedance (Z) | Woofers 8 Ω, Tweeter 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | Woofers 85.5 dB, Tweeter 89 dB |
| Frequency Response | Woofers 50-3.000 Hz. Tweeter 2.000-25.000 Hz. |
| Voice Coil Diameter | Woofers 26 mm, Tweeter 26 mm |
| DC Resistance (Re) | Woofers 5.5 Ω, Tweeter 4.6 Ω |
| Voice Coil Inductance (Le) | Woofers 0.49 mH, Tweeter 0.05 mH |
| Resonant Frequency (Fs) | Woofers 38 Hz. Tweeter 500 Hz. |
| Mechanical Q (Qms) | 2.22 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.36 |
| Surface Area of Cone (Sd) | Woofer 75 cm², Tweeter 7.0 cm² |
| Compliance Equivalent Volume (Vas) | Woofer 14 Litres |
| Maximum Linear Excursion (Xmax) | Woofers 8 mm (p-p), Tweeter 1.0 mm (p-p) |
| Overall Outside Diameter | Woofers 146 mm, Tweeter 110.2 mm |
| Overall Depth | Woofers 79.7 mm, Tweeter 41.2 mm |
| Baffle Cutout Diameter | Woofers 112 mm, Tweeter 85 x 19 mm |
| # Mounting Holes | Woofers 6, Tweeter 4 |
| Mounting Hole Diameter | Woofers 5 mm, Tweeter 4.5 mm |
