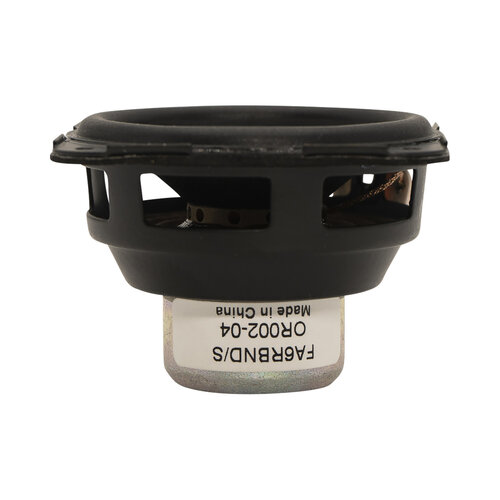

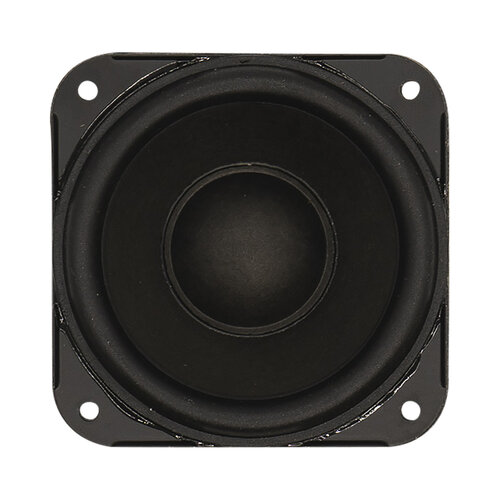

SEAS Orbit FA6RBND/S – OR002-04 Micro Driver
€24.95
The FA6RBND/S is a fullrange driver offering an extraordinary performance and sound clarity. A paper cone with excellent internal damping together with a perfectly matching surround gives a smooth and extended frequency response.
6 in stock
Highlights
- Paper cone
- Copper cap to ensure exceptional linearity in the force factor and coil inductance
- SPCC steel chassis keeps the critical components in perfect alignment
Product details
SEAS Orbit FA6RBND/S – OR002-04 Micro Driver
The FA6RBND/S is a fullrange driver offering an extraordinary performance and sound clarity. A paper cone with excellent internal damping together with a perfectly matching surround gives a smooth and extended frequency response. The fabric spider reflects very little acoustic energy to the cone and offers outstanding stiffness linearity. The stiff and stable SPCC steel chassis keeps the critical components in perfect alignment. The pole piece features a copper cap to ensure exceptional linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect choice for any application where limited space is a critical parameter.
Specifications
| Article number | FA6RBND/S |
| EAN | 8785256845996 |
| Woofer Series | Orbit |
| Woofer Type | Full Range |
| Nominal Diameter | 2 " | 58.4 mm |
| Power Handling (RMS) | 10 W |
| Power Handling (max) | 12 W |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 85.7 dB |
| Frequency Response | 200 – 20000 Hz |
| Voice Coil Diameter | 19.6 mm |
| Magnet Weight | 0.023 kg |
| DC Resistance (Re) | 3.96 Ω |
| Voice Coil Inductance (Le) | 0.13 mH |
| Resonant Frequency (Fs) | 109 Hz |
| Mechanical Q (Qms) | 3.33 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.51 |
| Diaphragm Mass Inc. Airload (Mms) | 1.81 g |
| Mechanical Compliance of Suspension (Cms) | 1.18 mm/N |
| Surface Area of Cone (Sd) | 17.35 cm² |
| BL Product (BL) | 2.9 N/A |
| Compliance Equivalent Volume (Vas) | 0.5 L |
| Maximum Linear Excursion (Xmax) | 4.3 mm |
| Driver's Mechanical Losses (Rms) | 0.37 Ns/m |
| Cone / Diaphragm Material | Paper |
| Basket / Frame Material | SPCC steel |
| Overall Outside Diameter | 58.4 mm |
| Overall Depth | 34.5 mm |
| Baffle Cutout Diameter | 51.5 mm |
| # Mounting Holes | 4 |
