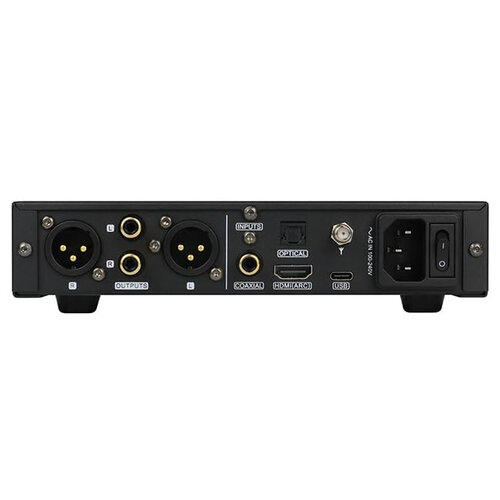

SMSL DO100PRO DAC Module
€259.95
The SMSL DO100PRO is a compact, affordable and very powerful DAC, with a meticulous design marked by the brand’s know-how. In particular, it contains two ES9039Q2M conversion chips that enable it to deliver an extremely fine and rich sound reproduction.
Available on backorder
Description
Highlights
- Mini size design, very suitable for desktop use
- CNC integrated milling process, simple and stylish
- 2 pieces of ESS Technology high-end D/A chip ES9039Q2M
- Qualcomm latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC
- 6x high-end dual op amp OPA1612
- 2nd generation XMOS solution supports DoP256 and native DSD512, and PCM supports up to 32bit/768kHz
- Japan Audio Association (JAS) Hi-Res certification
- Equipped with full-function remote control
Product details
SMSL DO100PRO DAC Module
Specifications
| Article number | DO100PRO |
| EAN | 6970141859765 |
| Product type | Audio DAC |
| Wireless Connectivity | Bluetooth 5.0 (LDAC, APTX/HD, SBC, AAC) |
| DAC Chipset | ES9039Q2M x 2 |
| Inputs | USB/Optical/Coaxial/Bluetooth/HDMI(ARC) |
| Outputs | XLR / RCA |
| THD(+N) | 0.00005% |
| Dynamic Range | XLR 131dB, RCA 127dB |
| SNR | XLR 126dB / RCA 124dB |
| USB Compatibility | Windows 7/8/8.1/10/11(Needs Driver), Mac OSX10.6 or Later, Linux(Driverless) |
| Processing resolution & sample rate | 44.1~192kHz |
| Power consumption | <10W |
| Standby power consumption | <0.5W |
| Remote control | Yes |
| Dimensions | 150x128x39mm |
| Weight | 1.45kg |
| plus | Utilizes 6 high-end dual op-amps OPA1612 and numerous audio-grade components; |
| Article number | DO100PRO |
| EAN | 6970141859765 |
Additional information
| Product type | Audio DAC |
|---|---|
| Wireless Connectivity | Bluetooth 5.0 (LDAC, APTX/HD, SBC, AAC) |
| DAC Chipset | ES9039Q2M x 2 |
| Inputs | USB/Optical/Coaxial/Bluetooth/HDMI(ARC) |
| Outputs | XLR / RCA |
| THD+N | 0.00005% |
| Dynamic Range | XLR 131dB, RCA 127dB |
| SNR | XLR 126dB / RCA 124dB |
| USB Compatibility | Windows 7/8/8.1/10/11(Needs Driver), Mac OSX10.6 or Later, Linux(Driverless) |
| Processing resolution & sample rate | 44.1~192kHz |
| Power consumption | <10W |
| Standby power consumption | <0.5W |
| Remote control | Yes |
| Dimensions | 150x128x39mm |
| Weight | 1.45kg |
