SMSL RAW-HA1 Stereo Amplifier
€269.95
The SMSL RAW-HA1 is a versatile and compact stereo amplifier designed to deliver high-fidelity sound for both headphone and speaker outputs. This all-in-one amplifier integrates a premium DAC and is packed with advanced features, making it ideal for audiophiles who value high-resolution audio and modern connectivity.
8 in stock
Highlights of the SMSL RAW-HA1 Stereo Amplifier
- Germany-engineered Infineon digital amplifier chip providing 2x 165W output at 4 ohms
- Cirrus Logic CS43131 DAC supporting PCM up to 32-bit/768kHz and DSD256
- Bluetooth 5.1 with LDAC and AptX HD codecs for high-quality wireless audio
- MQA and MQA-CD decoding support for master-level audio quality
Product details: SMSL RAW-HA1 Stereo Amplifier
SMSL RAW-HA1 Stereo Amplifier and Headphone Amp
With its compact build and high-performance components, the SMSL RAW-HA1 is engineered for serious listening with both headphones and speakers. At its core, the Infineon digital amplifier chip ensures efficient, powerful sound delivery, while the Japanese JRC NJW1194 volume control chip allows precise and low-distortion adjustments. The integrated Cirrus Logic CS43131 DAC enhances audio fidelity, supporting high-resolution formats up to 32-bit/768kHz PCM and DSD256, meeting the demands of modern audio formats.

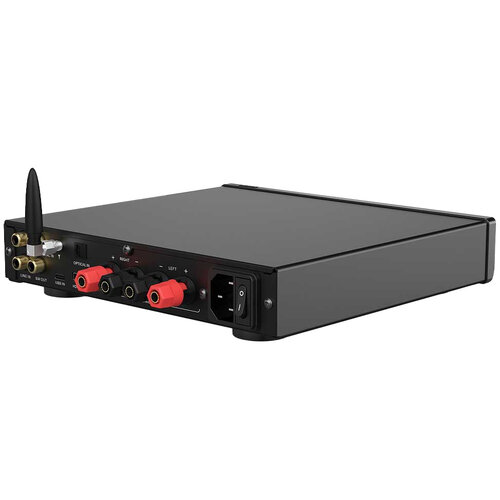

Connectivity is seamless with Bluetooth 5.1, supporting high-fidelity codecs like LDAC and AptX HD for superior wireless playback. Additionally, the RAW-HA1 offers a range of input options including USB, RCA, optical, coaxial, and HDMI ARC, allowing integration into various audio setups. It includes a tempered glass display panel and a remote control for added user convenience, while the dual UI design enables easy customization.
The SMSL RAW-HA1 is a versatile amplifier that combines robust performance with audiophile-grade features, making it a well-rounded choice for both desktop and home audio systems.
Specifications
| Article number | SMSL RAW-HA1 |
| EAN | 6970141850014 |
| Rated power output (RMS) | 2 x 165 Watts |
| Minimum load | 4 Ω |
| DAC | Cirrus Logic CS43131 |
| Maximum sampling rate | Up to 32-bit/768kHz PCM and DSD256 |
| Optical S/PDIF in/out | Input |
| Coaxial in/out | Input |
| RCA in/out | Input |
| USB | USB Input, HDMI (ARC) input |
| Headphone jack | 4.4 mm, 32 kΩ 30 mW |
| Subwoofer pre-out | Yes |
| Bluetooth | 5.1 |
| Accepted file formats | PCM. DSD |
| Dimensions (D x W x H) | 190 x 219 x 45 mm |
| Article number | SMSL RAW-HA1 |
| EAN | 6970141850014 |
| Rated power output (RMS) | 2 x 165 Watts |
|---|---|
| Minimum load | 4 Ω |
| DAC | Cirrus Logic CS43131 |
| Maximum sampling rate | Up to 32-bit/768kHz PCM and DSD256 |
| Optical S/PDIF in/out | Input |
| Coaxial in/out | Input |
| RCA in/out | Input |
| USB | USB Input, HDMI (ARC) input |
| Headphone jack | 4.4 mm, 32 kΩ 30 mW |
| Subwoofer pre-out | Yes |
| Bluetooth | 5.1 |
| Accepted file formats | PCM. DSD |
| Dimensions (D x W x H) | 190 x 219 x 45 mm |
| Specification | Bluetooth, Subwoofer pre-out |
