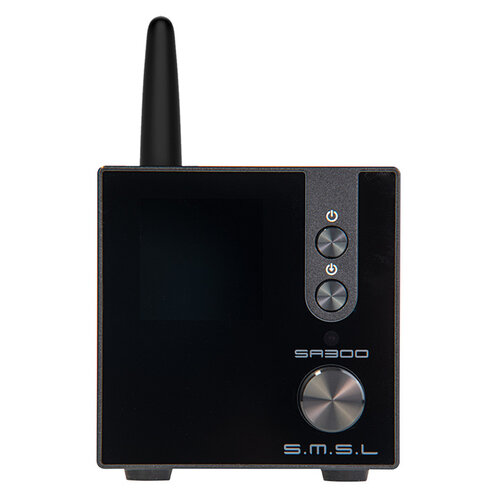

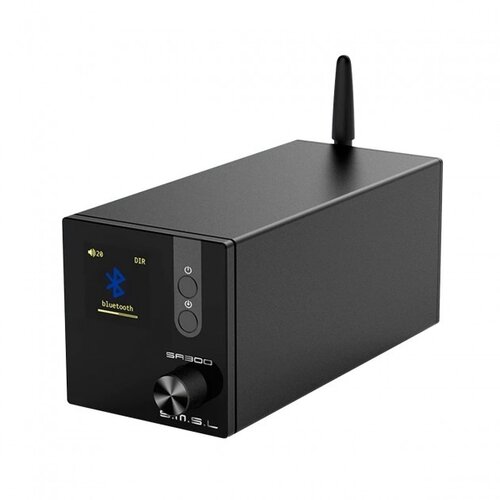

SMSL SA300 stereo amplifier
€152.45
SMSL SA300 HiFi Bluetooth digital amplifier with new German Infineon’s new technology class D power amplifier chip gives you a higher quality, efficiency up to 92% and further reducing power consumption. Using NJRC’s electronic volume control chip NJW1194 from Japan, precise volume control and low distortion.
6 in stock
Highlights
- High quality gold-plated input and output terminals;
- Perfect protection circuit for overheating, overcurrent, etc.
- High quality power adapter specially designed for audio.
- Bluetooth 5.0
- 2 x 80 watts at 4 ohm
Product details
SMSL SA300 HiFi Bluetooth Digital Amplifier
German Infineon’s new technology class D power amplifier chip, higher quality, efficiency up to 92%, further reducing power consumption; Using NJRC’s electronic volume control chip NJW1194 from Japan, precise volume control and low distortion; 32 bits 384KHz USB audio input and support for driver-free use; Super bass preamp output for connecting active subwoofers to form a 2.1 audio system; Built-in multiple EQ modes and treble/bass adjustment for easy matching of a variety of speakers and music; Qualcomm Bluetooth 5.0 receiver, support APTX, better sound quality, longer transmission distance. All aluminum alloy CNC precision processing shell, anodizing technology, and chamfering process, exquisite workmanship and delicate touch; LCD display and user-friendly operating system are simple and easy to understand, equipped with full-featured remote control function; Low power standby function to meet the latest European ErP2 standard; A large number of audio grade components are used to enhance the sound experience.
What’s in the Box?
- 1 x Remote control
- 1 x Power cable
- 1 x USB cable
- 1 x Manual
Specifications
| Article number | SA300 |
| EAN | 0691046949868 |
| Rated power output (RMS) | 2 x 80 watts at 4 ohm |
| Bridged power output (RMS) | – |
| Minimum load | 4 ohm |
| Signal-to-noise ratio (SNR) | 90 dB |
| Distortion | 0.008% THD+N |
| Distortion bridged | – |
| Efficiency | 91% |
| Frequency response | – |
| Input impedance | – |
| Input sensitivity | – |
| Auto turn-on sensitivity | – |
| DSP | – |
| DAC | check |
| Maximum sampling rate | 384 kHz |
| Circuit Topology | Infineon MA12070 |
| Amplifier classification | Class D |
| Speaker output channels | 2 |
| Subwoofer output channel | check |
| Analog in/out | check / – |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 2 / 1 |
| Bus in/out | -/- |
| XLR in/out | -/- |
| USB | check |
| Memory card slot | – |
| Network connection | – |
| Headphone jack | – |
| Subwoofer pre-out | check |
| Bluetooth | 5.0 |
| NFC | – |
| Wi-Fi | – |
| Banana plug compatible | check |
| Remote control | check |
| App control | – |
| Auto turn-on | – |
| Accepted file formats | – |
| Equalizer (EQ) adjustment | check |
| Equalizer (EQ) profiles | check |
| Multi zone/room | – |
| Crossover frequency adjustment | – |
| Bridge mode | – |
| Power requirements | 24 VDC |
| Power inlet connector | check |
| Power consumption | 35 watts (normal volume) |
| Stand-by power consumption | <0.5 watts |
| Dimensions (D x W x H) | 188 x 70 x 73 mm |
| Case material | Aluminum |
| plus | 2 x 80 Watts at 4 ohms |
| min | No DSP |
| Article number | SA300 |
| EAN | 0691046949868 |
| Rated power output (RMS) | 2 x 80 watts at 4 ohm |
|---|---|
| Minimum load | 4 ohm |
| Signal-to-noise ratio (SNR) | 90 dB |
| Distortion | 0.008% THD+N |
| Efficiency | 91% |
| DAC | check |
| Maximum sampling rate | 384 kHz |
| Circuit Topology | Infineon MA12070 |
| Amplifier classification | Class-D |
| Speaker output channels | 2 |
| Subwoofer output channel | check |
| Analog in/out | check / – |
| Optical S/PDIF in/out | -/- |
| Coaxial in/out | -/- |
| RCA in/out | 2 / 1 |
| Bus in/out | -/- |
| XLR in/out | -/- |
| USB | check |
| Subwoofer pre-out | check |
| Bluetooth | 5.0 |
| Banana plug compatible | check |
| Remote control | check |
| Equalizer (EQ) adjustment | check |
| Equalizer (EQ) profiles | check |
| Power Requirements | 24 VDC |
| Power inlet connector | check |
| Power consumption | 35 watts (normal volume) |
| Stand-by power consumption | <0.5 watts |
| Dimensions (D x W x H) | 188 x 70 x 73 mm |
| Case material | Aluminum |
| Specification | Bluetooth, Subwoofer pre-out |
