Sure Electronics BerryBak BLV-D3 Amplifier with Bluetooth AA-AS32991
€79.95
The BLV-D3 is a 2.1 channel high-efficiency Bluetooth audio amplifier equipped with ADAU1701 DSP and TPA3116 amplifier ICs. Engineered for both DIY enthusiasts and compact multimedia systems, it delivers clean, dynamic sound with intuitive user controls and dual power input options.
3 in stock
Highlights of the BerryBak BLV-D3
- 2 x 50W (stereo) + 1 x 100W (subwoofer) output powered by TPA3116 Class D amplifier
- Integrated ADAU1701 DSP for superior tone shaping and low distortion
- Bluetooth 5.0 and 3.5mm AUX input with auto-priority switching
- USB-C PD and DC (12V–24V) input support with 5A current handling
Product details BerryBak BLV-D3
BerryBak BLV-D3 2.1 Channel Bluetooth Audio Amplifier

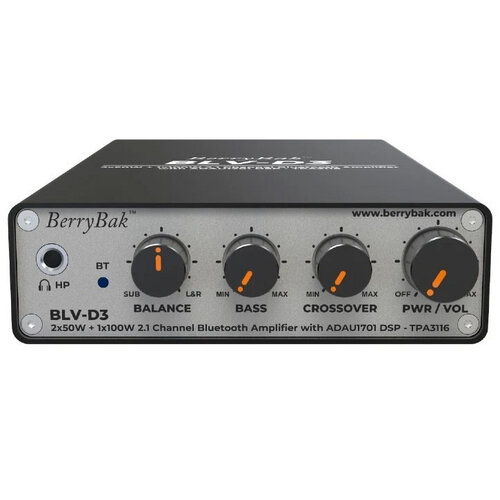

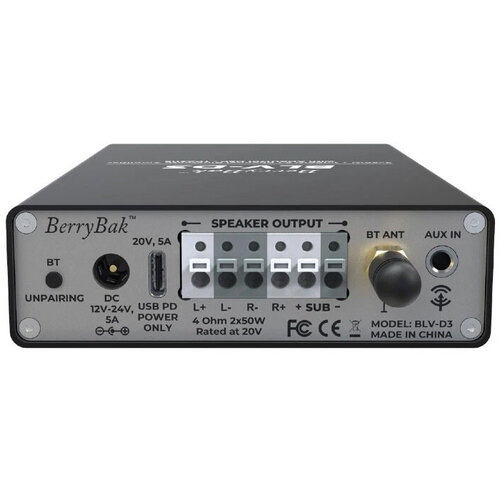

The BerryBak BLV-D3 is a compact, feature-rich 2.1 channel Bluetooth amplifier designed for versatile integration into audio systems. It provides two 50W stereo channels and a 100W subwoofer output, powered by the TPA3116 Class D amplifier and fine-tuned with an ADAU1701 DSP. With Bluetooth 5.0 and a 3.5mm AUX input, it automatically prioritizes wired input for seamless use. The unit features a full suite of potentiometers—volume, balance, bass, and crossover—for detailed tone control. Its screw-free terminal blocks simplify speaker connections, and dual power inputs (USB-C PD and DC jack) offer flexible setup options. With an output impedance of 600Ω on the headphone jack, users are advised to connect via a headphone amp for optimal fidelity. The BLV-D3 is ideal for compact speaker builds, multimedia projects, or anyone looking for clean DSP-driven sound in a small footprint.
Specifications
| Article number | AA-AS32991 |
| EAN | 6959687301839 |
| Rated power output (RMS) | 2 x 50 Watts at 4 ohms + 1 x 100 Watts at 2 ohms |
| Minimum load | 4 Ω + 2 Ω |
| DSP | check |
| Circuit Topology | TPA3116 |
| Subwoofer output channel | 100W (at 2Ω) |
| Bluetooth | 5.0 |
| Power requirements | 12-24V DC, 5A |
| Power inlet connector | USB Type-C (PD power) or DC Power Jack |
| Stand-by power consumption | 0.048 W |
| Dimensions (D x W x H) | 151.0 x 90.8 x 27.3 mm |
| plus | Efficient class-D topology ensures high sound quality and power efficiency |
| min | Complexity of setup might be challenging for beginners in precise audio customization via DSP |
| Article number | AA-AS32991 |
| EAN | 6959687301839 |
| Rated power output (RMS) | 2 x 50 Watts at 4 ohms + 1 x 100 Watts at 2 ohms |
|---|---|
| Minimum load | 4 Ω + 2 Ω |
| DSP | check |
| Circuit Topology | TPA3116 |
| Subwoofer output channel | 100W (at 2Ω) |
| Bluetooth | 5.0 |
| Power Requirements | 12-24V DC, 5A |
| Power inlet connector | USB Type-C (PD power) or DC Power Jack |
| Stand-by power consumption | 0.048 W |
| Dimensions (D x W x H) | 151.0 x 90.8 x 27.3 mm |
| Specification | Bluetooth |
