Accuton C173-6-191 7” Bass-midwoofer
€399.95
The Accuton C173-6-191 is a 7-inch bass-midrange driver designed for small bookshelf monitors or slim floorstanders.
5 in stock
Description
Product details

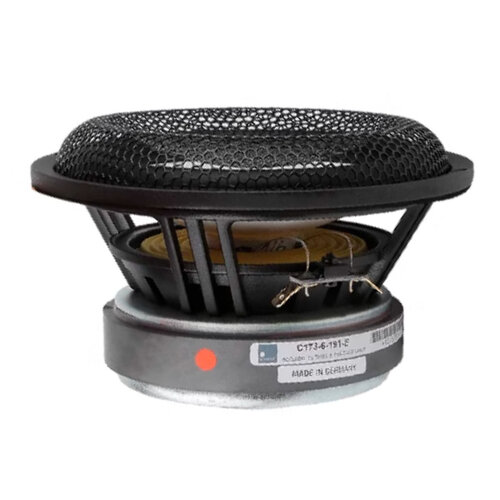

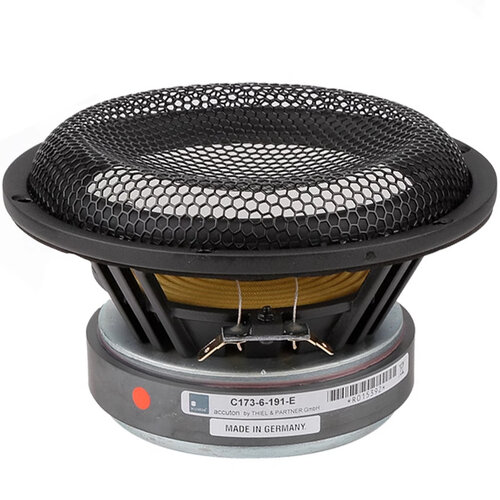

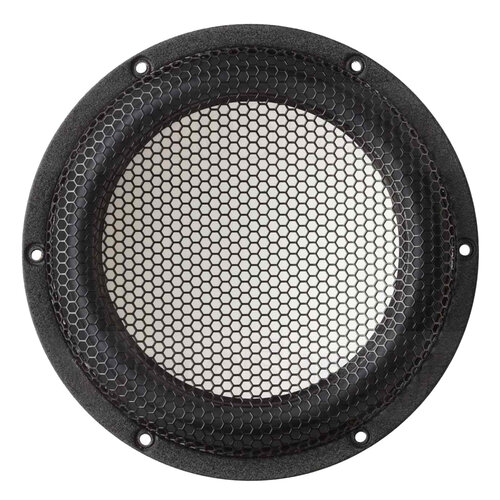

Accuton C173-6-191 7” Bass-midwoofer
The Accuton C173-6-191 features a medium-sized voice coil with a 38mm titanium voice coil former for high midrange resolution and a long excursion design for high SPL capabilities. The ceramic dome provides high damping of the 4 kHz dome resonance.
The C173-6-191 is the successor to the C173-6-095 and has higher excursion capabilities and smaller box size. This high-end 7″ ceramic dome bass-midrange driver has a frequency range of 35Hz – 2500Hz, 88dB / 2.83V / 1M, 6Ω, Fs: 33Hz, Qts: 0.32.
Specifications
| Article number | C173-6-191 |
| EAN | 8785256847426 |
| Power Handling (RMS) | 120 Watts |
| Impedance (Z) | 6 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.9 Ohm |
| Voice Coil Inductance (Le) | 0.72 mH |
| Resonant Frequency (Fs) | 38.6 Hz |
| Mechanical Q (Qms) | 5.27 |
| Electromagnetic Q (Qes) | 0.37 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 19.8 g |
| Mechanical Compliance of Suspension (Cms) | 0.86 mm/n |
| Surface Area of Cone (Sd) | 133 Cm2 |
| BL Product (BL) | 8.8 N/A |
| Compliance Equivalent Volume (Vas) | 21.6 ltr |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.91 Kg's |
| Cone / Diaphragm Material | Ceramic |
| Overall Outside Diameter | 173 MM |
| Overall Depth | 94.5 MM |
| Baffle Cutout Diameter | 146 MM |
| Article number | C173-6-191 |
| EAN | 8785256847426 |
Additional information
| Power Handling (RMS) | 120 Watts |
|---|---|
| Impedance (Z) | 6 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.9 Ohm |
| Voice Coil Inductance (Le) | 0.72 mH |
| Resonant Frequency (Fs) | 38.6 Hz |
| Mechanical Q (Qms) | 5.27 |
| Electromagnetic Q (Qes) | 0.37 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 19.8 g |
| Mechanical Compliance of Suspension (Cms) | 0.86 mm/N |
| Surface Area of Cone (Sd) | 133 cm2 |
| BL Product (BL) | 8.8 N/A |
| Compliance Equivalent Volume (Vas) | 21.6 ltr |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.91 Kg’s |
| Cone / Diaphragm Material | Ceramic |
| Overall Outside Diameter | 173 mm |
| Overall Depth | 94.5 mm |
| Baffle Cutout Diameter | 146 mm |
