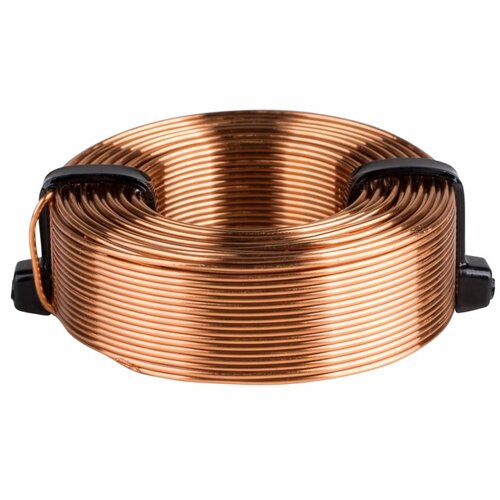

Dayton Audio AC20-10 | 0.10 mH | 0.21 Ω | 5% | 20 AWG | Air Core Inductor Crossover Coil
€3.25
Dayton Audio AC20-10 | 0.10 mH | 0.21 Ω | 5% | 20 AWG | Air Core Inductor Crossover Coil
81 in stock
Description
Highlights
- Highly refined copper wire for low DCR
- Perfect layer windings
- Air core construction
- 200 watts RMS power handling
- ±5% tolerance
Product details
Dayton Audio 20 gauge air core inductors are a great choice and the best value for building high quality crossovers. Features fully annealed refined copper wire, perfect layer windings and air core construction to ensure no hysteresis and saturation distortions.
Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.
Specifications
| Article number | AC20-10 |
| EAN | 0848791003585 |
| Coil type | Air core coil |
| Inductance | 0.1 mH |
| DCR | 0.21 ohms |
| Tolerance | 5% |
| Wire diameter | 20 AWG |
| Power handling (RMS) | 200 watts |
| Dimensions: Ø * H (mm) | 32 x 13 |
| Article number | AC20-10 |
| EAN | 0848791003585 |
Additional information
| Coil type | Air core coil |
|---|---|
| Inductance | 0.1 mH |
| DCR | 0.21 ohms |
| Tolerance | 5% |
| Wire diameter | 20 AWG |
| Power Handling (RMS) | 200 Watts |
| Dimensions: Ø * H (mm) | 32 x 13 |
