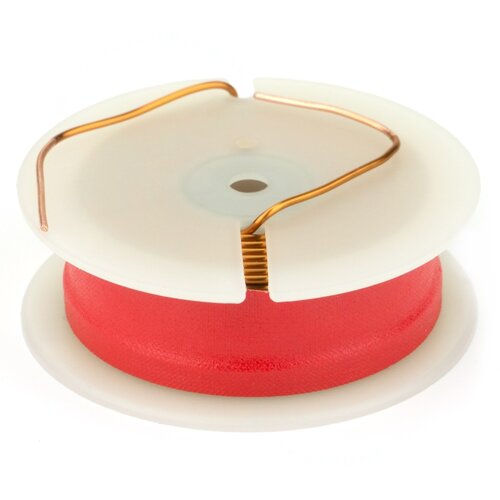

Mundorf L100-1,00 | 1,00 mH | 0,49 Ω | 2% | 18 AWG | MCoil AirCore crossover coil
€13.95
MCoil AirCores made from massive copper round-wire have been specially developed for high quality loudspeakers, which focus on achieving an utmost natural, detailed and acoustically balanced music performance.
8 in stock
Description
Highlights
- Massive copper round-wire
- Made in Germany
- Precision, dynamic, subtle tonal gradations, great detail and liveliness
Product details
Mundorf L100-1,00 | 1,00 mH | 0,49 Ω | 2% | 18 AWG | MCoil AirCore crossover coil
The acoustical properties of the L series can yet be significantly enhanced by applying Baked Wire Treatment – on air coils using wires with a larger cross-section – by Vacuum Impregnation.
Specifications: OFC-Copper 99.99% pure • Coil form: PA, fibre-glass reinforced • Coil body heat resistant up to max. 230°C/446°F • Body: 5818
Specifications
| Article number | L100-1,00 |
| EAN | 4060158004707 |
| Coil type | Air core coil |
| Inductance | 1 mH |
| DCR | 0.49 ohms |
| Tolerance | 2% |
| Wire diameter | 18 AWG |
| Power handling (RMS) | 300 watts |

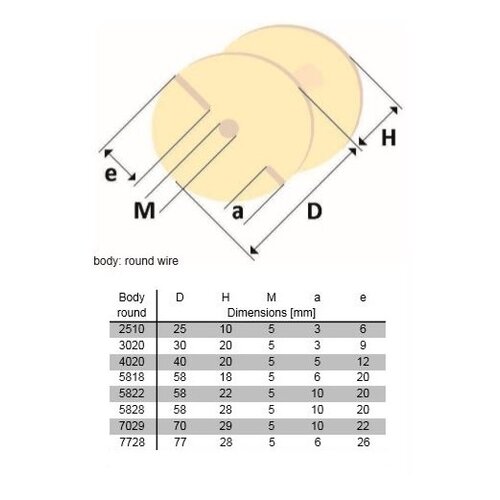

| Dimensions: Ø * H (mm) | 58 x 18 |
| Coil form | PA, fibre-glass reinforced |
| Body | 5818 |
| Article number | L100-1,00 |
| EAN | 4060158004707 |
Additional information
| Coil type | Air core coil |
|---|---|
| Inductance | 1 mH |
| DCR | 0.49 ohms |
| Tolerance | 2% |
| Wire diameter | 18 AWG |
| Power Handling (RMS) | 300 watts |
| Dimensions: Ø * H (mm) | 58 x 18 |
| Coil form | PA, fibre-glass reinforced |
| Body | 5818 |
