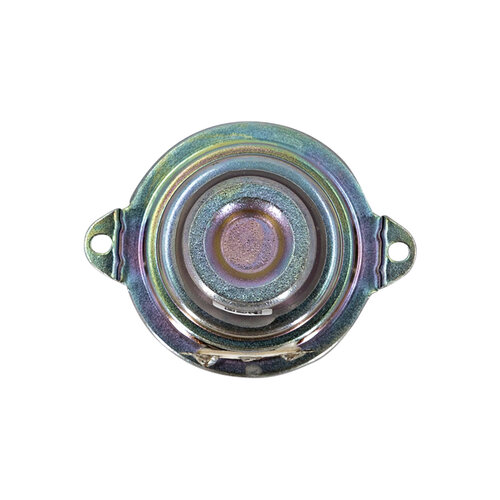

Dayton Audio CE45N-4 1.75″ Dual Neo Full-Range 5W 4 ohm
€7.45
The Dayton Audio CE45N-4 is a little speaker with a big sound. It is a 1.75-inch full-range woofer that is perfect for a variety of applications, including small bookshelf speakers, computer speakers, and portable speakers. It is also a popular choice for DIY speaker builders.
6 in stock
Highlights
- 1.75-inch full-range woofer with dual neodymium magnet structure
- Power handling capacity of 8 watts RMS
- Frequency response of 80 Hz to 20,000 Hz
- Compact size and lightweight design
- Good sound quality for the price
ย
Product details
Dayton Audio CE45N-4 1.75″ Dual Neo Full-Range 5W 4 ohm
ย
The CE45N-4 has a dual neodymium magnet structure that gives it a power handling capacity of 8 watts RMS and a frequency response of 80 Hz to 20,000 Hz. This means that it can produce surprisingly good sound quality, especially for its size.
ย
One of the things that makes the CE45N-4 so unique is its ability to produce clear and precise highs, even at high volumes. This is due to its dual neodymium magnet structure, which provides excellent power handling and transient response.
Specifications
| Article number | CE45N-4 |
| EAN | 0848791009297 |
| Woofer Series | Dayton Audio CE series |
| Woofer Type | Dual Neo Full-Range |
| Nominal Diameter | 1.75" |
| Power Handling (RMS) | 5 Watts |
| Power Handling (max) | 10 Watts |
| Impedance (Z) | 4 ฮฉ |
| Sensitivity (SPL at 1m / 2.83V) | 81 dB |
| Frequency Response | 150 – 20.000 Hz |
| Voice Coil Diameter | 16 mm |
| DC Resistance (Re) | 3.68 ฮฉ |
| Voice Coil Inductance (Le) | 0.07 mH |
| Resonant Frequency (Fs) | 178 Hz |
| Mechanical Q (Qms) | 4.23 |
| Electromagnetic Q (Qes) | 1.12 |
| Total Q (Qts) | 0.89 |
| Diaphragm Mass Inc. Airload (Mms) | 0.86 g |
| Mechanical Compliance of Suspension (Cms) | 0.92 mm/N |
| Surface Area of Cone (Sd) | 8.04 cmยฒ |
| Volume of Displacement (Vd) | 0.88 cmยณ |
| BL Product (BL) | 1.78 Tm |
| Compliance Equivalent Volume (Vas) | 0.084 liters |
| Maximum Linear Excursion (Xmax) | 1.1 mm |
| Overall Outside Diameter | 56.5 mm |
| Overall Depth | 24.5 mm |
| Baffle Cutout Diameter | 22 mm |
| # Mounting Holes | 2 |
| Mounting Hole Diameter | 3.2 mm |
| plus | Suitable for commercial installations, DIY projects, art exhibits, and more |
| Article number | CE45N-4 |
| EAN | 0848791009297 |
| Woofer Series | Dayton Audio CE series |
|---|---|
| Woofer Type | Dual Neo Full-Range |
| Nominal Diameter | 1.75″ |
| Power Handling (RMS) | 5 Watts |
| Power Handling (max) | 10 watts |
| Impedance (Z) | 4 ฮฉ |
| Sensitivity (SPL at 1m / 2.83V) | 81 dB |
| Frequency response | 150 – 20.000 Hz |
| Voice Coil Diameter | 16 mm |
| DC Resistance (Re) | 3.68 ฮฉ |
| Voice Coil Inductance (Le) | 0.07 mH |
| Resonant Frequency (Fs) | 178 Hz |
| Mechanical Q (Qms) | 4.23 |
| Electromagnetic Q (Qes) | 1.12 |
| Total Q (Qts) | 0.89 |
| Diaphragm Mass Inc. Airload (Mms) | 0.86 g |
| Mechanical Compliance of Suspension (Cms) | 0.92 mm/N |
| Surface Area of Cone (Sd) | 8.04 cmยฒ |
| Volume of Displacement (Vd) | 0.88 cmยณ |
| BL Product (BL) | 1.78 Tm |
| Compliance Equivalent Volume (Vas) | 0.084 liters |
| Maximum Linear Excursion (Xmax) | 1.1 mm |
| Overall Outside Diameter | 56.5 mm |
| Overall Depth | 24.5 mm |
| Baffle Cutout Diameter | 22 mm |
| # Mounting Holes | 2 |
| Mounting Hole Diameter | 3.2 mm |
