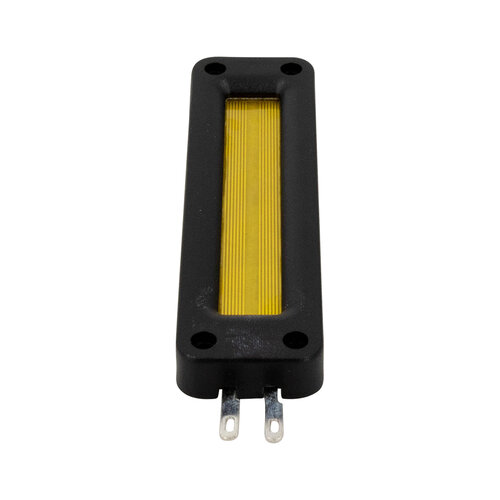

Dayton Audio PTMini-6 Planar Tweeter
€14.95
The Dayton Audio PTMini-6 is a miniature planar tweeter that is big on performance and sound quality! With 6 ohm impedance and incredibly small size this is an excellent choice for car audio or home use.
232 in stock
Highlights of the Dayton Audio PTMini-6 Planar Tweeter
- Compact planar ribbon tweeter driver
- High output and exceptional treble definition
- Surface or flush mount installation
- Potent neodymium magnetic design
- Supports 4,000 Hz crossover, 12 dB/octave
Product details Dayton Audio PTMini-6 Planar Tweeter
Dayton Audio PTMini-6 Planar Tweeter 6 Ohm
The clarity, definition, and transparency of a planar tweeter is unmatched by almost any other type of tweeter. Now Dayton Audio lets you build planar technology into more compact projects with the PTMini-6 planar tweeter! The surface-mount housing design can also be flush-mounted for a world of possible uses, such as a car A-pillar tweeter, a supertweeter for a full-range driver, a rear-mounted ambience tweeter, a conventional forward-facing tweeter configuration, or even a line array!
The membrane of a planar tweeter is an almost weightless ribbon of heat-resistant Kapton material and an etched aluminum conductor, enabling the performance of aluminum ribbon tweeters without the losses inherent in the transformer of a conventional ribbon tweeter. The result is a tweeter that is incredibly fast, dynamic, and smooth sounding with imperceptible distortion and excellent power handling. A crossover cut-off frequency of 4,000 Hz or higher is recommended with a 12 dB/octave filter slope.
Specifications
| Article number | PTMini-6 |
| EAN | 0848791001680 |
| Tweeter Type | Planar ribbon tweeter |
| Tweeter Series | Planar Series |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.5 dB |
| Frequency Response | 2,900 to 25,000 Hz |
| Resonant Frequency (Fs) | 4461 Hz |
| DC Resistance (Re) | 5.90 Ω |
| Total Q (Qts) | 1.74 |
| Overall Outside Diameter | 3.27" x 0.91" (83+10.5 x 8.2 mm) |
| Cutout Diameter | Element: 2.375" x 0.375" |
| Depth | 0.32" |
| Mounting Type | Screws |
| plus | High output and exceptional treble definition |
| Article number | PTMini-6 |
| EAN | 0848791001680 |
| Tweeter Type | Planar ribbon tweeter |
|---|---|
| Tweeter Series | Planar Series |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.5 dB |
| Frequency response | 2,900 to 25,000 Hz |
| Resonant Frequency (Fs) | 4461 Hz |
| DC Resistance (Re) | 5.90 Ω |
| Total Q (Qts) | 1.74 |
| Overall Outside Diameter | 3.27″ x 0.91″ (83+10.5 x 8.2 mm) |
| Cutout Diameter | Element: 2.375″ x 0.375″ |
| Depth | 0.32″ |
| Mounting type | Screws |
