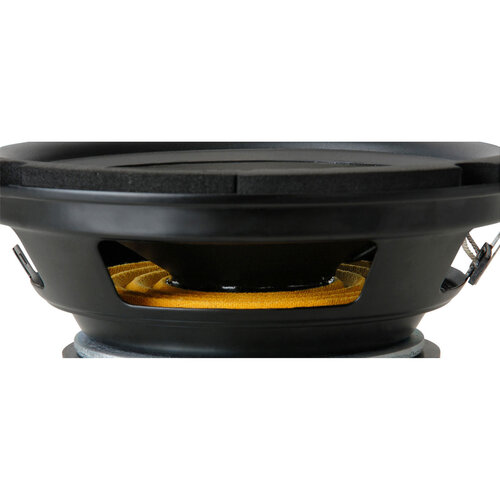

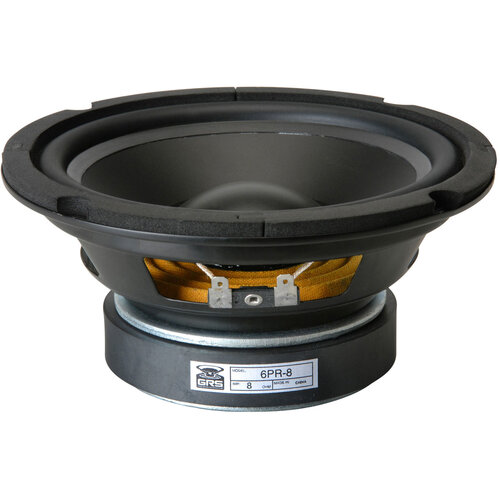

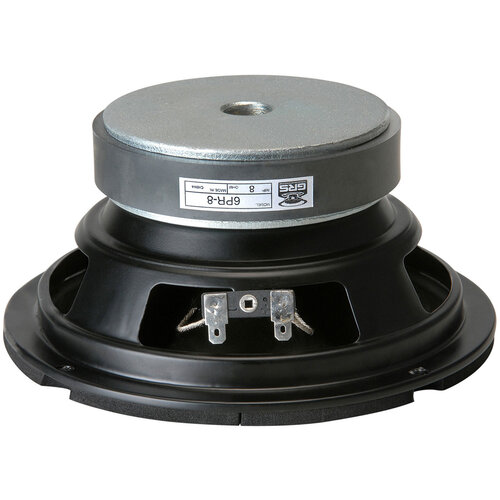

GRS 6PR-8 6-1/2″ Poly Cone Rubber Surround Woofer
€15.95
GRS 6PR-8 6-1/2″ polypropylene cone woofers with butyl rubber surrounds are great replacement speakers, but also provide excellent performance in new projects.
29 in stock
Description
Highlights
- Polypropylene cone for perfect balance of stiffness, mass, and self-damping
- Butyl rubber surround ensures high excursion and long term durability
- Stamped steel frame keeps components in perfect alignment
- Optimized motor features high-energy ceramic ferrite magnet, vented pole piece
Product details
GRS 6PR-8 6-1/2″ Poly Cone Rubber Surround Woofer
GRS 6PR-8 6-1/2″ polypropylene cone woofers with butyl rubber surrounds are great replacement speakers, but also provide excellent performance in new projects.
Specifications
| Article number | 6PR-8 |
| EAN | 0844632088513 |
| Woofer Type | Midwoofer |
| Nominal Diameter | 6-1/2" |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 85 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Frequency Response | 60 to 8,000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 7.1 ohms |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 69 Hz |
| Mechanical Q (Qms) | 3.51 |
| Electromagnetic Q (Qes) | 1.16 |
| Total Q (Qts) | 0.87 |
| Diaphragm Mass Inc. Airload (Mms) | 14.2 g |
| Mechanical Compliance of Suspension (Cms) | 0.38 mm/N |
| Surface Area of Cone (Sd) | 140.3 cm² |
| Volume of Displacement (Vd) | 42 cm³ |
| BL Product (BL) | 6.1 Tm |
| Compliance Equivalent Volume (Vas) | 10.6 liters |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Cone / Diaphragm Material | Poly |
| Surround Material | Rubber |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 6.5" |
| Overall Depth | 3.0625" |
| Baffle Cutout Diameter | 5.625" |
| # Mounting Holes | 4 |
| Article number | 6PR-8 |
| EAN | 0844632088513 |
Additional information
| Woofer Type | Midwoofer |
|---|---|
| Nominal Diameter | 6-1/2″ |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 85 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Frequency response | 60 to 8,000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 7.1 ohms |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 69 Hz |
| Mechanical Q (Qms) | 3.51 |
| Electromagnetic Q (Qes) | 1.16 |
| Total Q (Qts) | 0.87 |
| Diaphragm Mass Inc. Airload (Mms) | 14.2 g |
| Mechanical Compliance of Suspension (Cms) | 0.38 mm/N |
| Surface Area of Cone (Sd) | 140.3 cm² |
| Volume of Displacement (Vd) | 42 cm³ |
| BL Product (BL) | 6.1 Tm |
| Compliance Equivalent Volume (Vas) | 10.6 liters |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Cone / Diaphragm Material | Poly |
| Surround Material | Rubber |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 6.5″ |
| Overall Depth | 3.0625″ |
| Baffle Cutout Diameter | 5.625″ |
| # Mounting Holes | 4 |
