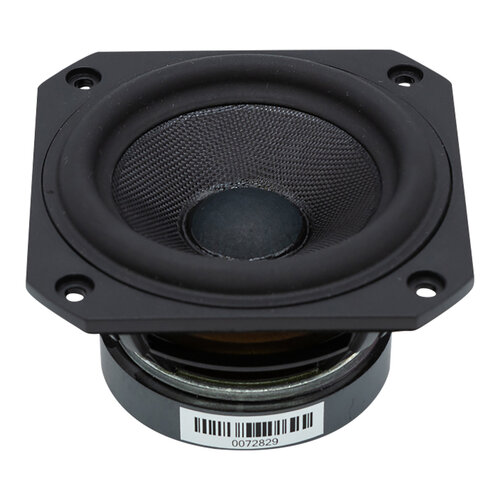

SB Acoustics SB10PGC21-4 3″ Full Range Driver
€18.95
SB Acoustics SB10PGC21-4 3″ Full Range Driver
Available on backorder
Description
Highlights
- Low damping surround and non-conductive voice coil former to ensure good dynamics and transparent sound character with fine detail.
- Vented voice coil for heat exchange and reduced compression.
- Light weight CCAW voice coil.
- Optimized fiber glass cone for smooth response.
- Compact square chassis for versatile integration.
Product details
The SB Acoustics SB10PGC21-4 is a nice contestant for your next FAST, portable speaker or tiny satellite build. It sports a highly optimized design with a stylish fiber glass cone, vented voice coil and low damping suspension ensuring good dynamics with lots of detail.
Specifications
| Article number | SB10PGC21-4 |
| EAN | 0691046947475 |
| Woofer Type | Full-Range |
| Nominal Diameter | 3" |
| Power Handling (RMS) | 20 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 84 dB |
| Frequency Response | 90 – 20,000 Hz |
| Voice Coil Diameter | 20.4 mm |
| Magnet Weight | 0.09 kg |
| DC Resistance (Re) | 3.4 ohms |
| Voice Coil Inductance (Le) | 0.15 mH |
| Resonant Frequency (Fs) | 89 Hz |
| Mechanical Q (Qms) | 11.2 |
| Electromagnetic Q (Qes) | 1.01 |
| Total Q (Qts) | 0.92 |
| Diaphragm Mass Inc. Airload (Mms) | 2.8g |
| Mechanical Compliance of Suspension (Cms) | 1.14 mm/N |
| Surface Area of Cone (Sd) | 27 cm2 |
| BL Product (BL) | 2.3 Tm |
| Compliance Equivalent Volume (Vas) | 1.2 liters |
| Maximum Linear Excursion (Xmax) | 2.25 mm |
| Driver's Mechanical Losses (Rms) | 0.14 kg/s |
| Cone / Diaphragm Material | Fiberglass |
| Voice Coil Wire Material | Copper-clad aluminum |
| Overall Outside Diameter | 95.5 mm |
| Overall Depth | 50.8 mm |
| Baffle Cutout Diameter | 75 mm |
| Bolt Circle Diameter | 85 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 3.3 mm |
| Article number | SB10PGC21-4 |
| EAN | 0691046947475 |
Additional information
| Woofer Type | Full-Range |
|---|---|
| Nominal Diameter | 3″ |
| Power Handling (RMS) | 20 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 84 dB |
| Frequency response | 90 – 20,000 Hz |
| Voice Coil Diameter | 20.4 mm |
| Magnet Weight | 0.09 kg |
| DC Resistance (Re) | 3.4 ohms |
| Voice Coil Inductance (Le) | 0.15 mH |
| Resonant Frequency (Fs) | 89 Hz |
| Mechanical Q (Qms) | 11.2 |
| Electromagnetic Q (Qes) | 1.01 |
| Total Q (Qts) | 0.92 |
| Diaphragm Mass Inc. Airload (Mms) | 2.8g |
| Mechanical Compliance of Suspension (Cms) | 1.14 mm/N |
| Surface Area of Cone (Sd) | 27 cm2 |
| BL Product (BL) | 2.3 Tm |
| Compliance Equivalent Volume (Vas) | 1.2 liters |
| Maximum Linear Excursion (Xmax) | 2.25 mm |
| Driver's Mechanical Losses (Rms) | 0.14 kg/s |
| Cone / Diaphragm Material | Fiberglass |
| Voice Coil Wire Material | Copper-clad aluminum |
| Overall Outside Diameter | 95.5 mm |
| Overall Depth | 50.8 mm |
| Baffle Cutout Diameter | 75 mm |
| Bolt Circle Diameter | 85 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 3.3 mm |
