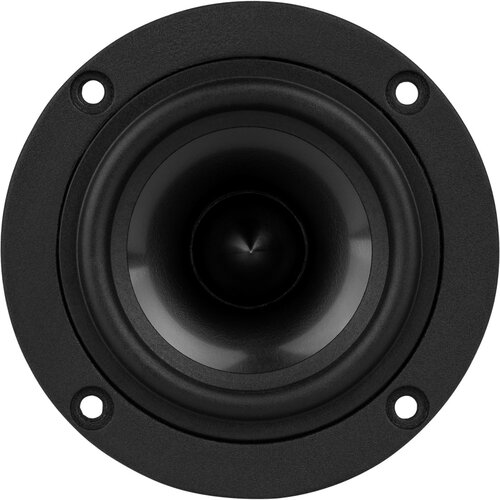

Dayton Audio RS75-8 3″ Reference Full-Range Driver
€43.95
Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform “boutique” drivers that cost several times the price.
11 in stock
Highlights
- Full-range performance with low distortion and high resolution
- Durable construction with aluminum frame, aluminum cone, rubber surround
- Distortion-reducing copper ring, copper cap, and aluminum phase plug
- Subtle yet high-tech look makes a bold cosmetic statement
- Designed and engineered in USA
Product details
Dayton Audio RS75-8 3″ Reference Full-Range Driver 8 Ohm
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform “boutique” drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
Specifications
| Article number | RS75-8 |
| EAN | 0848791005664 |
| Woofer Series | Dayton Audio Reference series |
| Woofer Type | Full-Range |
| Nominal Diameter | 3" |
| Power Handling (RMS) | 15 Watts |
| Power Handling (max) | 30 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 80.5 dB |
| Frequency Response | 160 to 20,000 Hz |
| Voice Coil Diameter | 0.60" |
| DC Resistance (Re) | 6.2 ohms |
| Voice Coil Inductance (Le) | 0.32 mH |
| Resonant Frequency (Fs) | 185 Hz |
| Mechanical Q (Qms) | 5.12 |
| Electromagnetic Q (Qes) | 1.35 |
| Total Q (Qts) | 1.07 |
| Diaphragm Mass Inc. Airload (Mms) | 1.23g |
| Mechanical Compliance of Suspension (Cms) | 0.60 mm/N |
| Surface Area of Cone (Sd) | 12 cm² |
| BL Product (BL) | 2.55 Tm |
| Compliance Equivalent Volume (Vas) | 0.004 ft.³ |
| Maximum Linear Excursion (Xmax) | 1.3 mm |
| Cone / Diaphragm Material | Aluminum |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 2.83" |
| Overall Depth | 1.52" |
| Baffle Cutout Diameter | 2.13" |
| Bolt Circle Diameter | 2.52" |
| # Mounting Holes | 4 |
| Sealed Volume | 0.017 ft.³ |
| Sealed F3 | 170 Hz |
| Vented Volume | 0.029 ft.³ |
| Vented F3 | 0.029 ft.³ |
| Article number | RS75-8 |
| EAN | 0848791005664 |
| Woofer Series | Dayton Audio Reference series |
|---|---|
| Woofer Type | Full-Range |
| Nominal Diameter | 3″ |
| Power Handling (RMS) | 15 Watts |
| Power Handling (max) | 30 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 80.5 dB |
| Frequency response | 160 to 20,000 Hz |
| Voice Coil Diameter | 0.60″ |
| DC Resistance (Re) | 6.2 ohms |
| Voice Coil Inductance (Le) | 0.32 mH |
| Resonant Frequency (Fs) | 185 Hz |
| Mechanical Q (Qms) | 5.12 |
| Electromagnetic Q (Qes) | 1.35 |
| Total Q (Qts) | 1.07 |
| Diaphragm Mass Inc. Airload (Mms) | 1.23g |
| Mechanical Compliance of Suspension (Cms) | 0.60 mm/N |
| Surface Area of Cone (Sd) | 12 cm² |
| BL Product (BL) | 2.55 Tm |
| Compliance Equivalent Volume (Vas) | 0.004 ft.³ |
| Maximum Linear Excursion (Xmax) | 1.3 mm |
| Cone / Diaphragm Material | Aluminum |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 2.83″ |
| Overall Depth | 1.52″ |
| Baffle Cutout Diameter | 2.13″ |
| Bolt Circle Diameter | 2.52″ |
| # Mounting Holes | 4 |
| Sealed Volume | 0.017 ft.³ |
| Sealed F3 | 170 Hz |
| Vented Volume | 0.029 ft.³ |
| Vented F3 | 0.029 ft.³ |
