SEAS Prestige T18REX/XFC – H1353-08/06 7″ Coaxial Woofer
€274.95
Seas Prestige T18REX/XFC – H1353-08/06 6.5″ Coaxial Woofer
Available on backorder
Highlights
- Long term power handling (RMS) is 200 Watts (Woofer) and 180 Watts (Tweeter)
- The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
- The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn
Product details

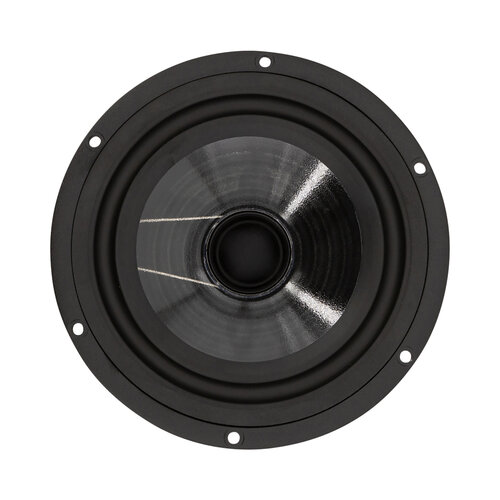

The PP/TPX based cone matches ideally with the adaptive rubber surround. The result is an outstandingly smooth frequency response from the mid woofer. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source. The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

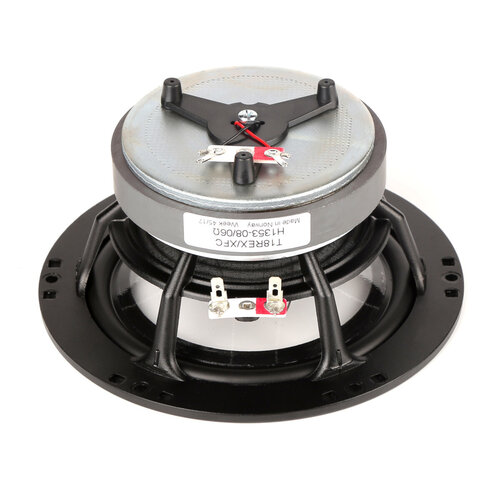

Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A great application example would be the SEAS application Loki Mk III. To learn more, please check out our blog article “SEAS Application Notes“.
Specifications
| Article number | T18REX/XFC |
| EAN | 0696277270095 |
| Woofer Series | Prestige |
| Woofer Type | Coaxial |
| Nominal Diameter | 6.5" | 176 mm |
| Power Handling (RMS) | 200 W |
| Power Handling (max) | 300 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 87.5 dB |
| Frequency Response | 30 Hz – 3000 Hz |
| Voice Coil Diameter | 39 mm |
| Magnet Weight | 0.85 kg |
| DC Resistance (Re) | 6.2 Ω |
| Voice Coil Inductance (Le) | 0.70 mH |
| Resonant Frequency (Fs) | 30 Hz |
| Mechanical Q (Qms) | 1.64 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.24 |
| Diaphragm Mass Inc. Airload (Mms) | 13.3 g |
| Mechanical Compliance of Suspension (Cms) | 1.9 mm/N |
| Surface Area of Cone (Sd) | 126 cm² |
| BL Product (BL) | 7.8 N/A |
| Compliance Equivalent Volume (Vas) | 42 L |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Driver's Mechanical Losses (Rms) | 1.71 Ns/m |
| Cone / Diaphragm Material | PP/TPX |
| Surround Material | Rubber |
| Basket / Frame Material | Injection moulded metal |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 73 mm |
| Baffle Cutout Diameter | 146.5 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
