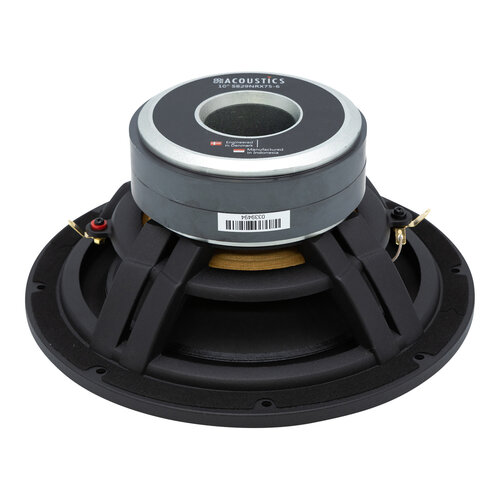

SB Acoustics SB29NRX75-6 Subwoofer
€189.95
SB Acoustics SB29NRX75-6 10″ Woofer
3 in stock
Description
Highlights
- Hard paper cone for improved piston operation (made in-house)
- Vented pole piece for minimum compression
- Vented cast aluminum chassis for optimum strength and low compression
- 3″ copper voice coil for improved power handling
- Long life silver lead wires
- Low damping rubber surround for improved dynamic linearity
- Non-conducting fiber glass voice coil former for minimum damping
Product details
The SB29NRX75-6 10″ woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum reflections good air flow. This woofer will perform best in a ported enclosure. This driver will get down to 28Hz in a 2.0 cubic foot box with a 3″ diameter port by 12″ long. In a sealed box of 0.8 cubic feet your F3 is 48Hz. Frame is 290mm in diameter. Cutout diameter is 247mm. Depth is 119mm. Flange thickness of 10mm. Screw mounting diameter is at 268mm. Screw hole opening is 5.5mm.
Specifications
| Article number | SB29NRX75-6 |
| EAN | 0696277269075 |
| Woofer Series | SB Acoustics NRX Norex series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 200 Watts |
| Impedance (Z) | 6 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 2.97" |
| DC Resistance (Re) | 4.2 ohms |
| Voice Coil Inductance (Le) | 1.8 mH |
| Resonant Frequency (Fs) | 21 Hz |
| Mechanical Q (Qms) | 5.7 |
| Electromagnetic Q (Qes) | 0.38 |
| Total Q (Qts) | 0.35 |
| Diaphragm Mass Inc. Airload (Mms) | 78 g |
| Mechanical Compliance of Suspension (Cms) | 0.74 mm/N |
| Surface Area of Cone (Sd) | 312 cm2 |
| BL Product (BL) | 10.7 Tm |
| Compliance Equivalent Volume (Vas) | 3.60 ft.³ |
| Maximum Linear Excursion (Xmax) | 11 mm |
| Article number | SB29NRX75-6 |
| EAN | 0696277269075 |
Additional information
| Woofer Series | SB Acoustics NRX Norex series |
|---|---|
| Woofer Type | Midwoofer |
| Nominal Diameter | 10″ |
| Power Handling (RMS) | 200 Watts |
| Impedance (Z) | 6 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 2.97″ |
| DC Resistance (Re) | 4.2 ohms |
| Voice Coil Inductance (Le) | 1.8 mH |
| Resonant Frequency (Fs) | 21 Hz |
| Mechanical Q (Qms) | 5.7 |
| Electromagnetic Q (Qes) | 0.38 |
| Total Q (Qts) | 0.35 |
| Diaphragm Mass Inc. Airload (Mms) | 78 g |
| Mechanical Compliance of Suspension (Cms) | 0.74 mm/N |
| Surface Area of Cone (Sd) | 312 cm2 |
| BL Product (BL) | 10.7 Tm |
| Compliance Equivalent Volume (Vas) | 3.60 ft.³ |
| Maximum Linear Excursion (Xmax) | 11 mm |
