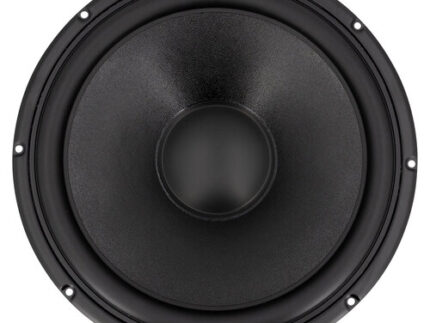

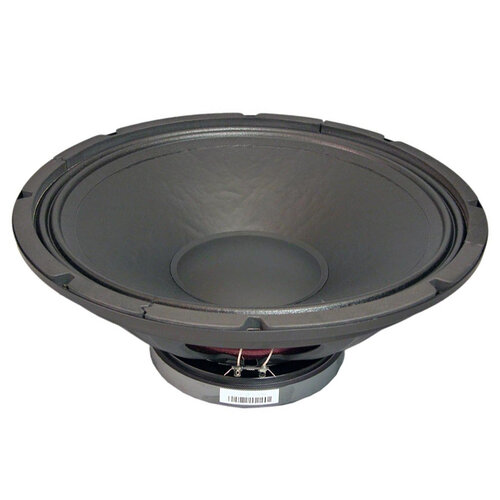

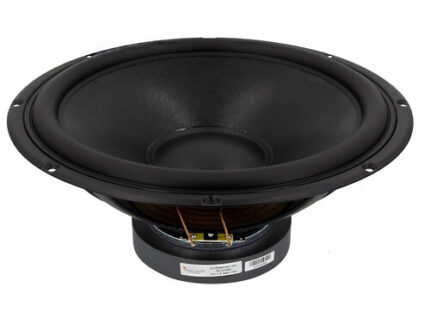

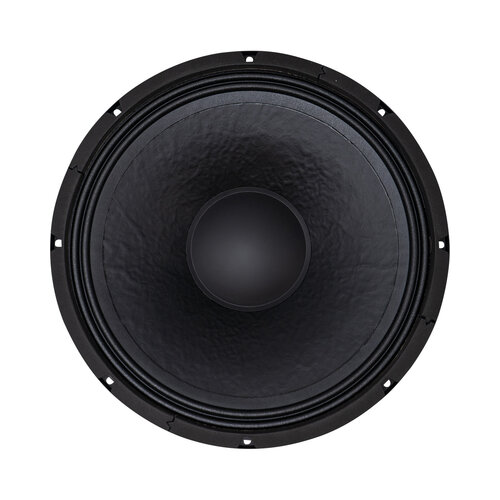

SB Audience BIANCO-15OB350 Open Baffle Woofer
€139.95
SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.
8 in stock
Highlights
- Proprietary cone paper material made in-house
- Vented pole piece for reduced compression
- Minimum damping fiber glass voice coil former
- 2.5″ voice coil
- Long life silver lead wires
- Weather-proof coated cone paper
- Designed for open baffle applications
Product Details
SB Audience BIANCO-15OB350 Open Baffle Woofer
SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.
There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.
Specifications
| Article number | BIANCO-15OB350 |
| EAN | 8785256846481 |
| Woofer Series | SB Audience Bianco series |
| Woofer Type | Open Baffle |
| Nominal Diameter | 15” |
| Power Handling (RMS) | 350 Watts |
| Power Handling (max) | 700 W |
| Impedance (Z) | 8 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 98 dB |
| Frequency Response | 34 – 3700 Hz |
| Voice Coil Diameter | 65.5 mm (2.5 in) |
| DC Resistance (Re) | 7.2 Ohm |
| Voice Coil Inductance (Le) | 1.72mH |
| Resonant Frequency (Fs) | 34 Hz |
| Mechanical Q (Qms) | 12.17 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.57 |
| Diaphragm Mass Inc. Airload (Mms) | 106.48g |
| Mechanical Compliance of Suspension (Cms) | 0.21mm/N |
| Surface Area of Cone (Sd) | 855.3cm² |
| BL Product (BL) | 16.48 Tm |
| Compliance Equivalent Volume (Vas) | 212.73liters |
| Maximum Linear Excursion (Xmax) | 11.02 mm |
| Driver's Mechanical Losses (Rms) | 1.87Kg/s |
| Basket / Frame Material | Stamped steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 391 mm (15.39 in) |
| Baffle Cutout Diameter | 363 mm (14.29 in) |
| Bolt Circle Diameter | 376.7 mm (14.83 in) |
| Article number | BIANCO-15OB350 |
| EAN | 8785256846481 |
| Woofer Series | SB Audience Bianco series |
|---|---|
| Woofer Type | Open Baffle |
| Nominal Diameter | 15” |
| Power Handling (RMS) | 350 watts |
| Power Handling (max) | 700 W |
| Impedance (Z) | 8 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 98 dB |
| Frequency response | 34 – 3700 Hz |
| Voice Coil Diameter | 65.5 mm (2.5 in) |
| DC Resistance (Re) | 7.2 Ohm |
| Voice Coil Inductance (Le) | 1.72mH |
| Resonant Frequency (Fs) | 34 Hz |
| Mechanical Q (Qms) | 12.17 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.57 |
| Diaphragm Mass Inc. Airload (Mms) | 106.48g |
| Mechanical Compliance of Suspension (Cms) | 0.21mm/N |
| Surface Area of Cone (Sd) | 855.3cm² |
| BL Product (BL) | 16.48 Tm |
| Compliance Equivalent Volume (Vas) | 212.73liters |
| Maximum Linear Excursion (Xmax) | 11.02 mm |
| Driver's Mechanical Losses (Rms) | 1.87Kg/s |
| Basket / Frame Material | Stamped Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 391 mm (15.39 in) |
| Baffle Cutout Diameter | 363 mm (14.29 in) |
| Bolt Circle Diameter | 376.7 mm (14.83 in) |
