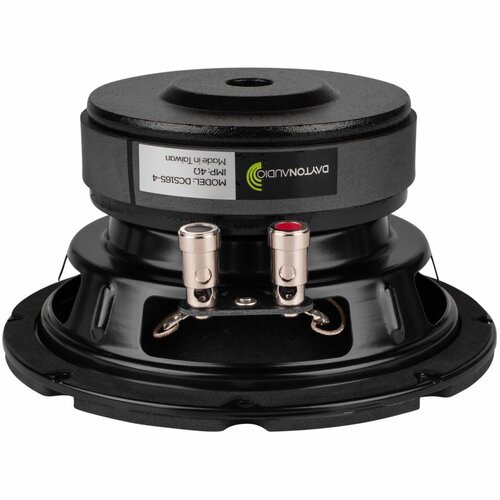

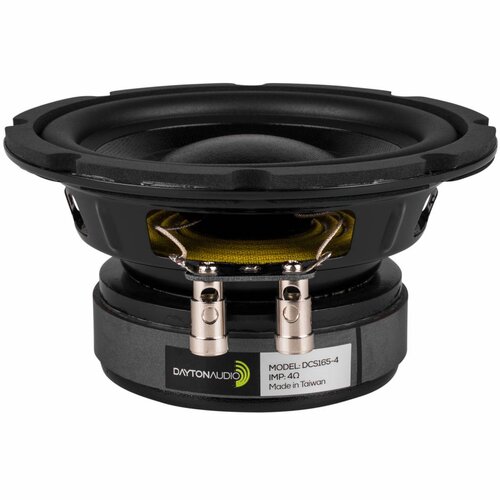

Dayton Audio DCS165-4 Subwoofer
€73.45
Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2″ subwoofer from Dayton Audio’s Classic Series is the perfect low cost solution for compact low frequency designs.
Available on backorder
Highlights
- 4-layer VC with polyimide former allows high power handling
- Vented pole piece and bumped back plate provide plenty of VC travel with minimal compression
- Copper pole piece cap minimizes inductance
- Rigid non-pressed treated paper/Kevlar cone with rubber surround
- Great for home and automotive applications
Product details
Dayton Audio DCS165-4 6-1/2″ Classic Subwoofer 4 Ohm
Dayton Audio’s rugged DCS165-4 6-1/2″ subwoofer has all of the performance-enhancing attributes you would expect from a larger high-output subwoofer. With a vented pole piece and 4 ohm, 4-layer voice coil, this driver can handle up 100 watt RMS. The non-pressed paper cone is reinforced with Kevlar to increase stiffness, which promotes linear travel through the limits of its excursion. In addition, the pole piece includes a copper cap that keeps inductance to a minimum. The DCS165-4 driver is ideal for use in small multimedia speakers, portable speakers, or even automotive systems where space is at a minimum.
Specifications
| Article number | DCS165-4 |
| EAN | 0848791001901 |
| Woofer Series | Dayton Audio Classic series |
| Woofer Type | Subwoofer |
| Nominal Diameter | 6.50" |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | 200 watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87.4 dB |
| Frequency Response | 36 – 1,100 Hz |
| Voice Coil Diameter | 38.5 mm |
| DC Resistance (Re) | 3.4 Ohms |
| Voice Coil Inductance (Le) | 1.43 mH @ 1 kHz |
| Resonant Frequency (Fs) | 35.7 Hz |
| Mechanical Q (Qms) | 6.62 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 39.5g |
| Mechanical Compliance of Suspension (Cms) | 0.5 mm/N |
| Surface Area of Cone (Sd) | 124.7 cm² |
| Volume of Displacement (Vd) | 74.8 cm³ |
| BL Product (BL) | 9.15 Tm |
| Compliance Equivalent Volume (Vas) | 12.1 liters |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton®/Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 6.57" |
| Overall Depth | 3.25" |
| Baffle Cutout Diameter | 5.62" |
| # Mounting Holes | 8 |
| Article number | DCS165-4 |
| EAN | 0848791001901 |
| Woofer Series | Dayton Audio Classic series |
|---|---|
| Woofer Type | Subwoofer |
| Nominal Diameter | 6.50″ |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | 200 watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87.4 dB |
| Frequency response | 36 – 1,100 Hz |
| Voice Coil Diameter | 38.5 mm |
| DC Resistance (Re) | 3.4 ohms |
| Voice Coil Inductance (Le) | 1.43 mH @ 1 kHz |
| Resonant Frequency (Fs) | 35.7 Hz |
| Mechanical Q (Qms) | 6.62 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 39.5g |
| Mechanical Compliance of Suspension (Cms) | 0.5 mm/N |
| Surface Area of Cone (Sd) | 124.7 cm² |
| Volume of Displacement (Vd) | 74.8 cm³ |
| BL Product (BL) | 9.15 Tm |
| Compliance Equivalent Volume (Vas) | 12.1 liters |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton®/Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 6.57″ |
| Overall Depth | 3.25″ |
| Baffle Cutout Diameter | 5.62″ |
| # Mounting Holes | 8 |
