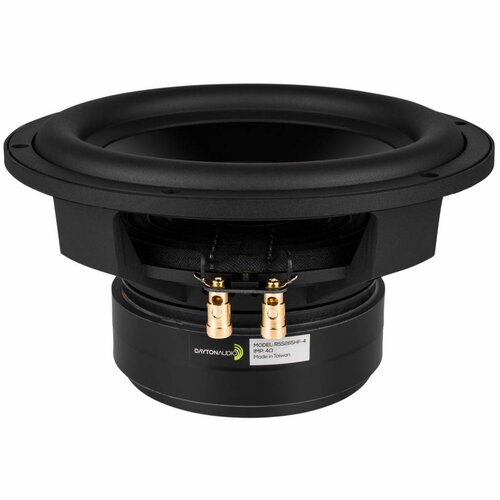

Dayton Audio Reference RSS265HF-4 Subwoofer
€259.95
The Dayton Audio RSS265HF-4 10″ subwoofer features the high-definition/low-distortion attributes of the acclaimed Reference Series, and provides great results in compact single-driver subwoofer speaker systems…or when used in multiples!
Available on backorder
Highlights
- Extensively vented motor eliminates compression and allows quiet excursion
- Lightweight black anodized aluminum cone for rigidity and lower moving mass
- Suitable for sealed or vented enclosures
- Triple shorting ring motor for ultra-low distortion
- 2-layer coil for reduced back EMF
- Highest quality materials throughout for long-lasting performance
Product details
Dayton Audio RSS265HF-4 10″ Reference HF Subwoofer 4 Ohm
As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HF 10″ subwoofer is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, thick rubber surround, and custom basket give this Dayton Audio driver a unique, high-end look. Choose the High Fidelity (HF) version for home systems when you are looking for clean, low bass and are not restricted by speaker cabinet size.
Specifications
| Article number | RSS265HF-4 |
| EAN | 0844632006913 |
| Woofer Series | Dayton Audio Reference series |
| Woofer Type | Subwoofer |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 350 Watts |
| Power Handling (max) | 700 watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87.8 dB |
| Frequency Response | 22 – 1,000 Hz |
| Voice Coil Diameter | 64 mm |
| Magnet Weight | 100 oz. |
| DC Resistance (Re) | 3.5 ohms |
| Voice Coil Inductance (Le) | 0.96 mH @ 1 kHz |
| Resonant Frequency (Fs) | 25.6 Hz |
| Mechanical Q (Qms) | 3.06 |
| Electromagnetic Q (Qes) | 0.53 |
| Total Q (Qts) | 0.45 |
| Diaphragm Mass Inc. Airload (Mms) | 120g |
| Mechanical Compliance of Suspension (Cms) | 0.32 mm/N |
| Surface Area of Cone (Sd) | 356.3 cm² |
| Volume of Displacement (Vd) | 438.3 cm³ |
| BL Product (BL) | 11.43 Tm |
| Compliance Equivalent Volume (Vas) | 54 liters |
| Maximum Linear Excursion (Xmax) | 12.3 mm |
| Cone / Diaphragm Material | Black Anodized Aluminum Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 266 mm |
| Overall Depth | 136.5 mm |
| Baffle Cutout Diameter | 235 mm |
| # Mounting Holes | 6 |
| Sealed Volume | 0.53 ft.³ |
| Sealed F3 | 51 Hz |
| Vented Volume | 1.68 ft.³ |
| Vented F3 | 27 Hz |
