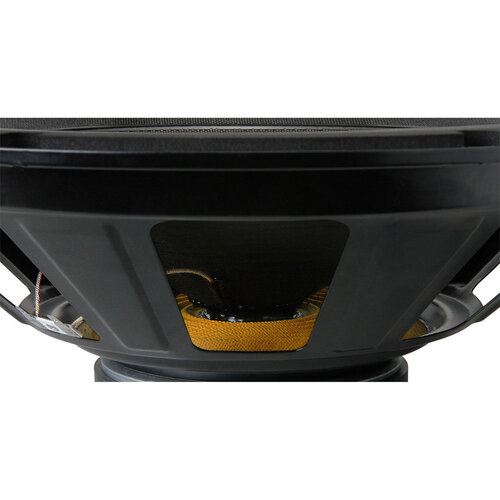

GRS 15PF-8 15″ Paper Cone Foam Surround Woofer
€54.95
The GRS 15PR-8 speaker is the best choice you can make if you need to replace a worn out, blown 15″ woofer.
35 in stock
Description
Highlights
- Perfect for use in sealed-box home theater and music systems
- Poly-laminated paper cone, treated foam surround, and polymer dust cap
- Smooth frequency response with minimal cone breakup
Product details
GRS 15PF-8 15″ Paper Cone Foam Surround Woofer
The GRS 15PR-8 speaker is the best choice you can make if you need to replace a worn out, blown 15″ woofer. Thanks to its carefully optimized parameters, the GRS 15PF-8 15″ poly-laminated paper cone woofer provides a high degree of compatibility when used as a replacement speaker—it also delivers excellent performance in your new projects, too.
Specifications
| Article number | 15PF-8 |
| EAN | 0844632088506 |
| Woofer Type | Midwoofer |
| Nominal Diameter | 15" |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Frequency Response | 25 to 4,000 Hz |
| Voice Coil Diameter | 1.5" |
| DC Resistance (Re) | 7.21 ohms |
| Voice Coil Inductance (Le) | 1.14 mH |
| Resonant Frequency (Fs) | 29 Hz |
| Mechanical Q (Qms) | 5.09 |
| Electromagnetic Q (Qes) | 1.92 |
| Total Q (Qts) | 1.39 |
| Compliance Equivalent Volume (Vas) | 9.39 ft.³ |
| Maximum Linear Excursion (Xmax) | 4 mm |
| Cone / Diaphragm Material | Treated Paper |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 15.125" |
| Overall Depth | 5.44" |
| Baffle Cutout Diameter | 14" |
| # Mounting Holes | 8 |
| Sealed Volume | 5.64 ft.³ |
| Sealed F3 | 29 Hz |
| Vented Volume | 110 ft.³ |
| Vented F3 | 20.88 Hz |
| Article number | 15PF-8 |
| EAN | 0844632088506 |
Additional information
| Woofer Type | Midwoofer |
|---|---|
| Nominal Diameter | 15″ |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Frequency response | 25 to 4,000 Hz |
| Voice Coil Diameter | 1.5″ |
| DC Resistance (Re) | 7.21 ohms |
| Voice Coil Inductance (Le) | 1.14 mH |
| Resonant Frequency (Fs) | 29 Hz |
| Mechanical Q (Qms) | 5.09 |
| Electromagnetic Q (Qes) | 1.92 |
| Total Q (Qts) | 1.39 |
| Compliance Equivalent Volume (Vas) | 9.39 ft.³ |
| Maximum Linear Excursion (Xmax) | 4 mm |
| Cone / Diaphragm Material | Treated Paper |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 15.125″ |
| Overall Depth | 5.44″ |
| Baffle Cutout Diameter | 14″ |
| # Mounting Holes | 8 |
| Sealed Volume | 5.64 ft.³ |
| Sealed F3 | 29 Hz |
| Vented Volume | 110 ft.³ |
| Vented F3 | 20.88 Hz |
