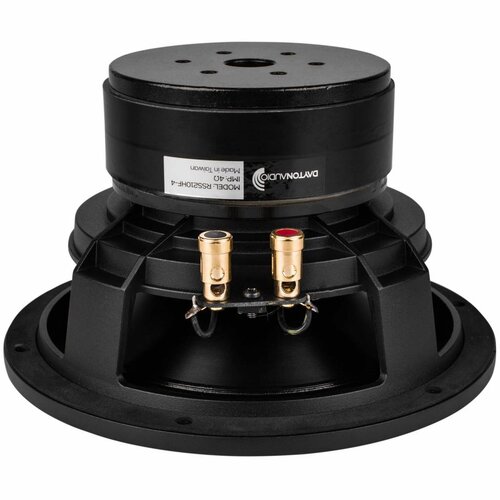

Dayton Audio Reference RSS210HF-4 Subwoofer
€179.95
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
6 in stock
Highlights
- Extensively vented motor eliminates compression and allows quiet excursion
- Lightweight black anodized aluminum cone for rigidity and lower moving mass
- Suitable for sealed or vented enclosures
- Triple shorting ring motor for ultra-low distortion
- 2-layer coil for reduced back EMF
- Highest quality materials throughout for long-lasting performance
Product details
Dayton Audio RSS210HF-4 8″ Reference HF Subwoofer 4 Ohm
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
Specifications
| Article number | RSS210HF-4 |
| EAN | 0844632062308 |
| Woofer Series | Dayton Audio Reference series |
| Woofer Type | Subwoofer |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 280 Watts |
| Power Handling (max) | 560 watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 85.6 dB |
| Frequency Response | 27 – 1,000 Hz |
| Voice Coil Diameter | 51 mm |
| Magnet Weight | 50 oz. |
| DC Resistance (Re) | 3.1 ohms |
| Voice Coil Inductance (Le) | 0.7 mH @ 1 kHz |
| Resonant Frequency (Fs) | 29.6 Hz |
| Mechanical Q (Qms) | 3.25 |
| Electromagnetic Q (Qes) | 0.69 |
| Total Q (Qts) | 0.57 |
| Diaphragm Mass Inc. Airload (Mms) | 78.4g |
| Mechanical Compliance of Suspension (Cms) | 0.37 mm/N |
| Surface Area of Cone (Sd) | 219.0 cm² |
| Volume of Displacement (Vd) | 197.1 cm³ |
| BL Product (BL) | 8.12 Tm |
| Compliance Equivalent Volume (Vas) | 23.7 liters |
| Maximum Linear Excursion (Xmax) | 9 mm |
| Cone / Diaphragm Material | Black Anodized Aluminum Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 213 mm |
| Overall Depth | 124 mm |
| Baffle Cutout Diameter | 185 mm |
| # Mounting Holes | 6 |
| Sealed Volume | 0.55 ft.³ |
| Sealed F3 | 48 Hz |
| Vented Volume | 1.76 ft.³ |
| Vented F3 | 24 Hz |
