Peerless by Tymphany SLS-P830667 Subwoofer
€79.95
The Peerless SLS Series combines high quality performance with an affordable design.
362 in stock
Description
Highlights of the Peerless SLS-P830667 Subwoofer
- Sensitivity (SPL at 1m / 2.83V): 86.5 dB
- Resonant Frequency (Fs): 46 Hz
- Premium sculpted stamped steel chassis
- Coated paper cone with rubber edge
Product details Peerless SLS-P830667 Subwoofer

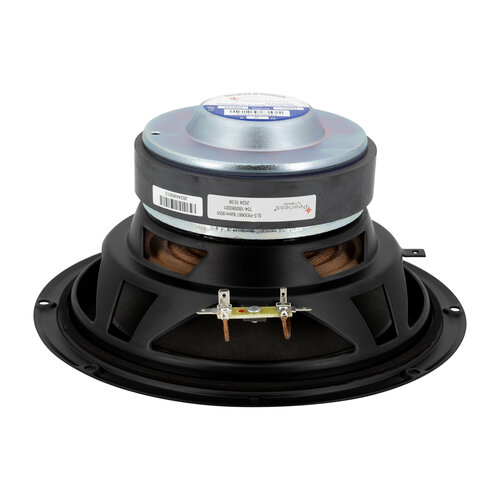

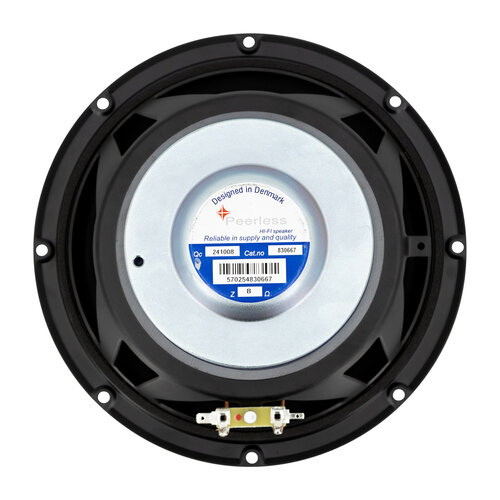

Peerless by Tymphany SLS-P830667 8″ Paper Cone SLS Subwoofer
The SLS line combines high quality performance with an affordable design. This 8 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
Specifications
| Article number | SLS-P830667 |
| EAN | 0844632084126 |
| Woofer Series | Peerless by Tymphany SLS series |
| Woofer Type | Subwoofer |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 90 Watts |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 86.5 dB |
| Frequency Response | 40 – 800 Hz |
| Voice Coil Diameter | 38.4 mm |
| DC Resistance (Re) | 5.6 Ω |
| Voice Coil Inductance (Le) | 0.829 mH |
| Resonant Frequency (Fs) | 46 Hz |
| Mechanical Q (Qms) | 7.21 |
| Electromagnetic Q (Qes) | 0.836 |
| Total Q (Qts) | 0.75 |
| Diaphragm Mass Inc. Airload (Mms) | 36.4 |
| Mechanical Compliance of Suspension (Cms) | 0.33 mm/N |
| Surface Area of Cone (Sd) | 201 cm² |
| BL Product (BL) | 8.33 Tm |
| Compliance Equivalent Volume (Vas) | 19 Liters |
| Maximum Linear Excursion (Xmax) | 11.1 mm |
| Cone / Diaphragm Material | Coated Paper |
| Surround Material | Rubber |
| Basket / Frame Material | Pressed Steel Basket |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 213 mm |
| Overall Depth | 111.4 mm |
| Baffle Cutout Diameter | 178 mm |
| Bolt Circle Diameter | Ø 5.2 mm |
| # Mounting Holes | 8 |
| plus | Perfect replacement sub |
| min | Little limited Xmax |
| Article number | SLS-P830667 |
| EAN | 0844632084126 |
Additional information
| Woofer Series | Peerless by Tymphany SLS series |
|---|---|
| Woofer Type | Subwoofer |
| Nominal Diameter | 8″ |
| Power Handling (RMS) | 90 Watts |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 86.5 dB |
| Frequency response | 40 – 800 Hz |
| Voice Coil Diameter | 38.4 mm |
| DC Resistance (Re) | 5.6 Ω |
| Voice Coil Inductance (Le) | 0.829 mH |
| Resonant Frequency (Fs) | 46 Hz |
| Mechanical Q (Qms) | 7.21 |
| Electromagnetic Q (Qes) | 0.836 |
| Total Q (Qts) | 0.75 |
| Diaphragm Mass Inc. Airload (Mms) | 36.4 |
| Mechanical Compliance of Suspension (Cms) | 0.33 mm/N |
| Surface Area of Cone (Sd) | 201 cm² |
| BL Product (BL) | 8.33 Tm |
| Compliance Equivalent Volume (Vas) | 19 Liters |
| Maximum Linear Excursion (Xmax) | 11.1 mm |
| Cone / Diaphragm Material | Coated Paper |
| Surround Material | Rubber |
| Basket / Frame Material | Pressed Steel Basket |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 213 mm |
| Overall Depth | 111.4 mm |
| Baffle Cutout Diameter | 178 mm |
| Bolt Circle Diameter | Ø 5.2 mm |
| # Mounting Holes | 8 |
