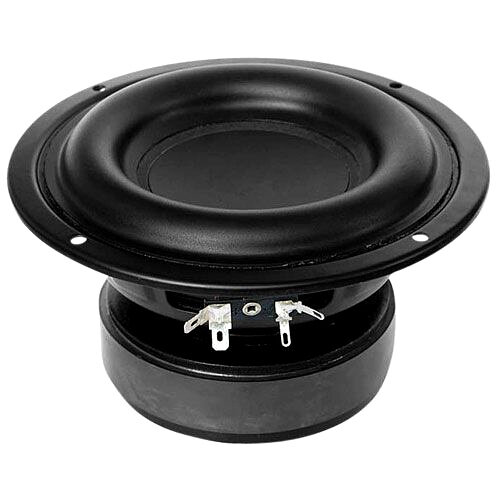

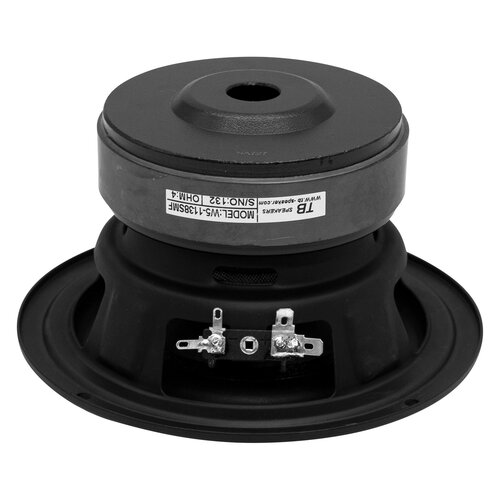

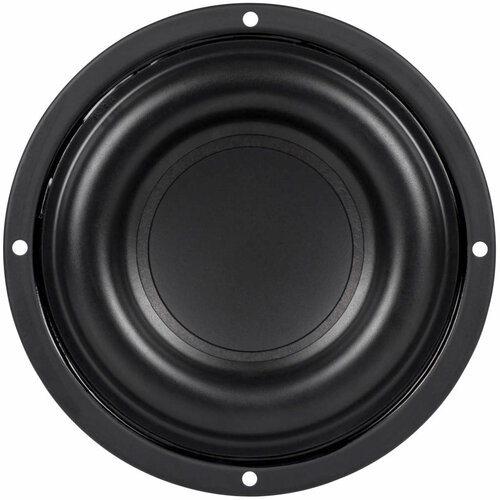

Tang Band W5-1138SMF Subwoofer
€54.95
Tang Band’s unique W5-1138SMF is the 5-1/4″ driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.
1051 in stock
Highlights of the W5-1138SMF subwoofer
- Long-throw high-power loading design (X-max = 9.25mm)
- Paper cone with big roll, less damping rubber surround
- Vented pole piece
- Stamping steel basket
- Suitable for subwoofer application
Product details Tang Band W5-1138SMF
Tang Band W5-1138SMF 5-1/4″ Paper Cone Subwoofer Speaker
Unleash Big Bass in a Compact Package. The one-of-a-kind Tang Band W5-1138SMF 5-1/4″ subwoofer has a generous 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4″ 4-layer voice coil ensure impressive bass performance and high power handling. The vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce power compression. The ultimate miniature subwoofer driver!
Experience powerful, room-filling bass in the tiniest of spaces with the Tang Band Ultra-Miniaturized Subwoofer. Designed to deliver impressive low-frequency performance in a compact form factor, this subwoofer is perfect for applications where space is limited but audio quality is paramount. Get ready to redefine your audio experience with big bass from a small package.
Specifications
| Article number | W5-1138SMF |
| EAN | 0844632092855 |
| Woofer Type | Subwoofer |
| Nominal Diameter | 5-1/4" |
| Power Handling (RMS) | 40 Watts |
| Power Handling (max) | 80 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 85 dB |
| Frequency Response | 45 to 1,500 Hz |
| Voice Coil Diameter | 1.25" |
| DC Resistance (Re) | 3.4 ohms |
| Voice Coil Inductance (Le) | 0.34 mH |
| Resonant Frequency (Fs) | 45 Hz |
| Mechanical Q (Qms) | 3.56 |
| Electromagnetic Q (Qes) | 0.57 |
| Total Q (Qts) | 0.49 |
| Diaphragm Mass Inc. Airload (Mms) | 28.81g |
| Mechanical Compliance of Suspension (Cms) | 0.37 mm/N |
| Surface Area of Cone (Sd) | 94 cm² |
| BL Product (BL) | 7.17 Tm |
| Compliance Equivalent Volume (Vas) | 0.17 ft.³ |
| Maximum Linear Excursion (Xmax) | 9.25 mm |
| Cone / Diaphragm Material | Paper |
| Surround Material | Rubber |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 6.14" |
| Overall Depth | 3.67" |
| Baffle Cutout Diameter | 4.74" |
| # Mounting Holes | 4 |
| Sealed Volume | 0.1 ft.³ |
| Sealed F3 | 73 Hz |
| Vented Volume | 0.26 ft.³ |
| Vented F3 | 35 Hz |
