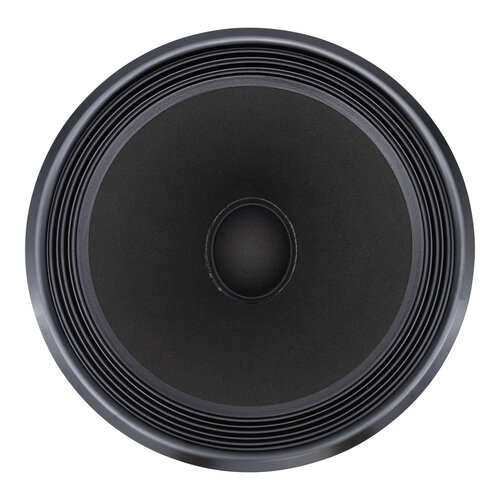

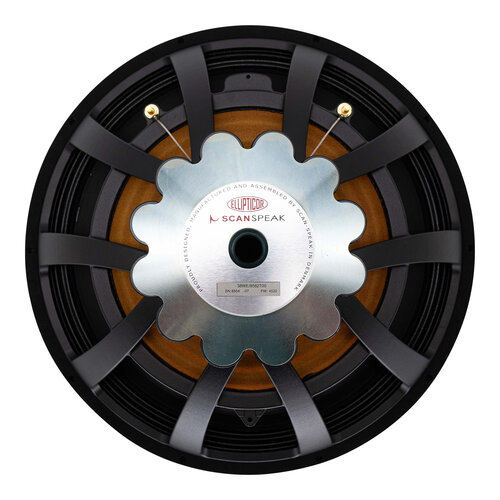

Scan-Speak Ellipticor 38WE/8582T00 Woofer
€1,399.95
The Scan-Speak Ellipticor 38WE/8582T00 is a high-performance 15-inch woofer that is designed for use in high-end audio applications. It features an elliptical voice coil and magnet gap, which helps to reduce breakup modes and improve overall performance. The woofer also has a powerful SD AirCirc magnet system, which provides high sensitivity and low distortion.
6 in stock
Highlights
- High sensitivity
- Low distortion
- Fast transient response
- Elliptical voice coil and magnet gap
- Powerful SD AirCirc magnet system
- Versatile design
Product details
Scan-Speak Ellipticor 38WE/8582T00 Woofer
The 38WE/8582T00 is a versatile woofer that can be used in a variety of speaker designs. It is well-suited for use in full-range speakers, subwoofers, and even sound reinforcement applications. The woofer’s elliptical voice coil and magnet gap help to improve its performance in the low-frequency range, while its powerful SD AirCirc magnet system provides high sensitivity and low distortion.
It is made with high-quality materials and construction, and it features a number of innovative design features that help to improve its performance. The woofer is also backed by Scan-Speak’s reputation for quality and reliability.
Specifications
| Article number | 38WE/8582T00 |
| EAN | 8785256848522 |
| Woofer Series | Scan-Speak Ellipticor series |
| Woofer Type | Woofer |
| Nominal Diameter | 15 " |
| Power Handling (RMS) | 350 Watts |
| Power Handling (max) | 650 Watt |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 95 dB |
| Frequency Response | 26-1000 Hz |
| Voice Coil Diameter | 84/68 mm Elliptical |
| DC Resistance (Re) | 6.4 Ω |
| Voice Coil Inductance (Le) | 0.8 mH |
| Resonant Frequency (Fs) | 26 Hz |
| Mechanical Q (Qms) | 3.78 |
| Electromagnetic Q (Qes) | 0.26 |
| Total Q (Qts) | 0.24 |
| Diaphragm Mass Inc. Airload (Mms) | 85.5 g |
| Mechanical Compliance of Suspension (Cms) | 3.78 |
| Surface Area of Cone (Sd) | 825 cm² |
| BL Product (BL) | 18.7 Tm |
| Compliance Equivalent Volume (Vas) | 423 Litres |
| Maximum Linear Excursion (Xmax) | 10.2 mm |
| Driver's Mechanical Losses (Rms) | 3.7 kg/s |
| Overall Outside Diameter | 380 mm |
| Overall Depth | 169 mm |
| Baffle Cutout Diameter | 354 mm |
| # Mounting Holes | 10 |
| Mounting Hole Diameter | 5.5 mm |
| plus | Elliptical voice coil |
| Article number | 38WE/8582T00 |
| EAN | 8785256848522 |
| Woofer Series | Scan-Speak Ellipticor series |
|---|---|
| Woofer Type | Woofer |
| Nominal Diameter | 15 “ |
| Power Handling (RMS) | 350 watts |
| Power Handling (max) | 650 Watt |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 95 dB |
| Frequency response | 26-1000 Hz |
| Voice Coil Diameter | 84/68 mm Elliptical |
| DC Resistance (Re) | 6.4 Ω |
| Voice Coil Inductance (Le) | 0.8 mH |
| Resonant Frequency (Fs) | 26 Hz |
| Mechanical Q (Qms) | 3.78 |
| Electromagnetic Q (Qes) | 0.26 |
| Total Q (Qts) | 0.24 |
| Diaphragm Mass Inc. Airload (Mms) | 85.5 g |
| Mechanical Compliance of Suspension (Cms) | 3.78 |
| Surface Area of Cone (Sd) | 825 cm2 |
| BL Product (BL) | 18.7 Tm |
| Compliance Equivalent Volume (Vas) | 423 Litres |
| Maximum Linear Excursion (Xmax) | 10.2 mm |
| Driver's Mechanical Losses (Rms) | 3.7 kg/s |
| Overall Outside Diameter | 380 mm |
| Overall Depth | 169 mm |
| Baffle Cutout Diameter | 354 mm |
| # Mounting Holes | 10 |
| Mounting Hole Diameter | 5.5 mm |
