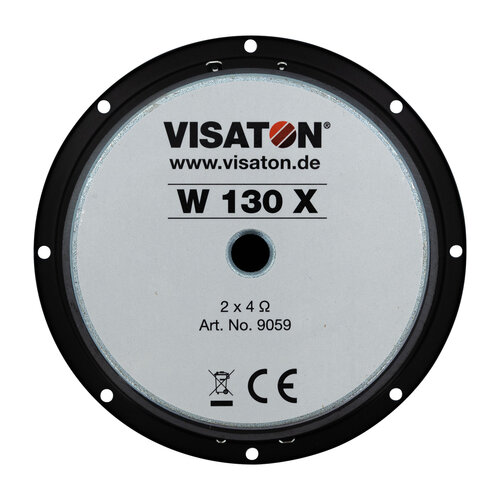

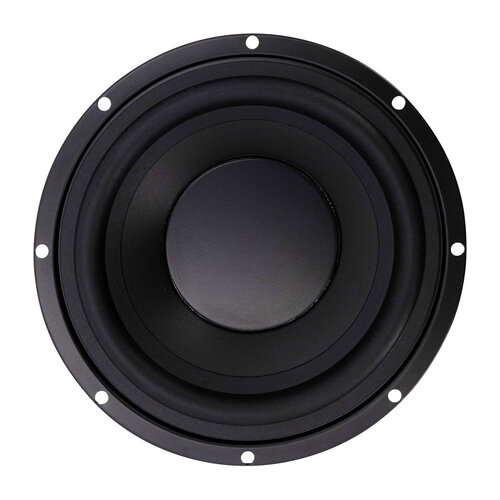

Visaton W 130 X 5″ DVC Woofer 4 Ohm
€59.95
13 cm (5″) woofer with robust polypropylene membrane for very compact subwoofer.
12 in stock
Description
Highlights
- Large Volume Displacement
- Low Resonance Frequency
- Double Voice Coil
Product details
Visaton W 130 X 5″ DVC Woofer 4 Ohm
Designed for multi-purpose applications due to 2 x 4 ohms double voice coil, with excellent properties as 8 ohms drivers in series configuration. The enormous membrane displacement for its size as well as the very low resonance frequency allows a considerable sound pressure level, this you would not expect from such a small speaker.
Visaton article code: 9059
Specifications
| Article number | W 130 X |
| EAN | 4007540090597 |
| Woofer Type | Midwoofer |
| Nominal Diameter | 5" |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 90 Watts |
| Impedance (Z) | 4+4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 78 dB |
| Frequency Response | 40 – 6,000 Hz |
| Voice Coil Diameter | 40 mm |
| DC Resistance (Re) | 2.0 – 7.9 ohms |
| Voice Coil Inductance (Le) | 0.69 – 2.75 mH |
| Resonant Frequency (Fs) | 40 Hz |
| Mechanical Q (Qms) | 4.27 – 4.59 |
| Electromagnetic Q (Qes) | 0.41 – 0.86 |
| Total Q (Qts) | 0.71 |
| Diaphragm Mass Inc. Airload (Mms) | 37g |
| Mechanical Compliance of Suspension (Cms) | 0.448 mm/N |
| Surface Area of Cone (Sd) | 94.2 cm2 |
| BL Product (BL) | 6.5 – 13.2 Tm |
| Compliance Equivalent Volume (Vas) | 5.1 – 5.64 Liters |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Cone / Diaphragm Material | Polypropylene |
| Dual Voice Coil | check |
| Overall Outside Diameter | 148.2 mm |
| Overall Depth | 72 mm |
| Baffle Cutout Diameter | 123 mm |
| Bolt Circle Diameter | 141 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4.3 mm |
| Article number | W 130 X |
| EAN | 4007540090597 |
Additional information
| Woofer Type | Midwoofer |
|---|---|
| Nominal Diameter | 5″ |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 90 Watts |
| Impedance (Z) | 4+4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 78 dB |
| Frequency response | 40 – 6,000 Hz |
| Voice Coil Diameter | 40 mm |
| DC Resistance (Re) | 2.0 – 7.9 ohms |
| Voice Coil Inductance (Le) | 0.69 – 2.75 mH |
| Resonant Frequency (Fs) | 40 Hz |
| Mechanical Q (Qms) | 4.27 – 4.59 |
| Electromagnetic Q (Qes) | 0.41 – 0.86 |
| Total Q (Qts) | 0.71 |
| Diaphragm Mass Inc. Airload (Mms) | 37g |
| Mechanical Compliance of Suspension (Cms) | 0.448 mm/N |
| Surface Area of Cone (Sd) | 94.2 cm2 |
| BL Product (BL) | 6.5 – 13.2 Tm |
| Compliance Equivalent Volume (Vas) | 5.1 – 5.64 Liters |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Cone / Diaphragm Material | Polypropylene |
| Dual Voice Coil | check |
| Overall Outside Diameter | 148.2 mm |
| Overall Depth | 72 mm |
| Baffle Cutout Diameter | 123 mm |
| Bolt Circle Diameter | 141 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4.3 mm |
